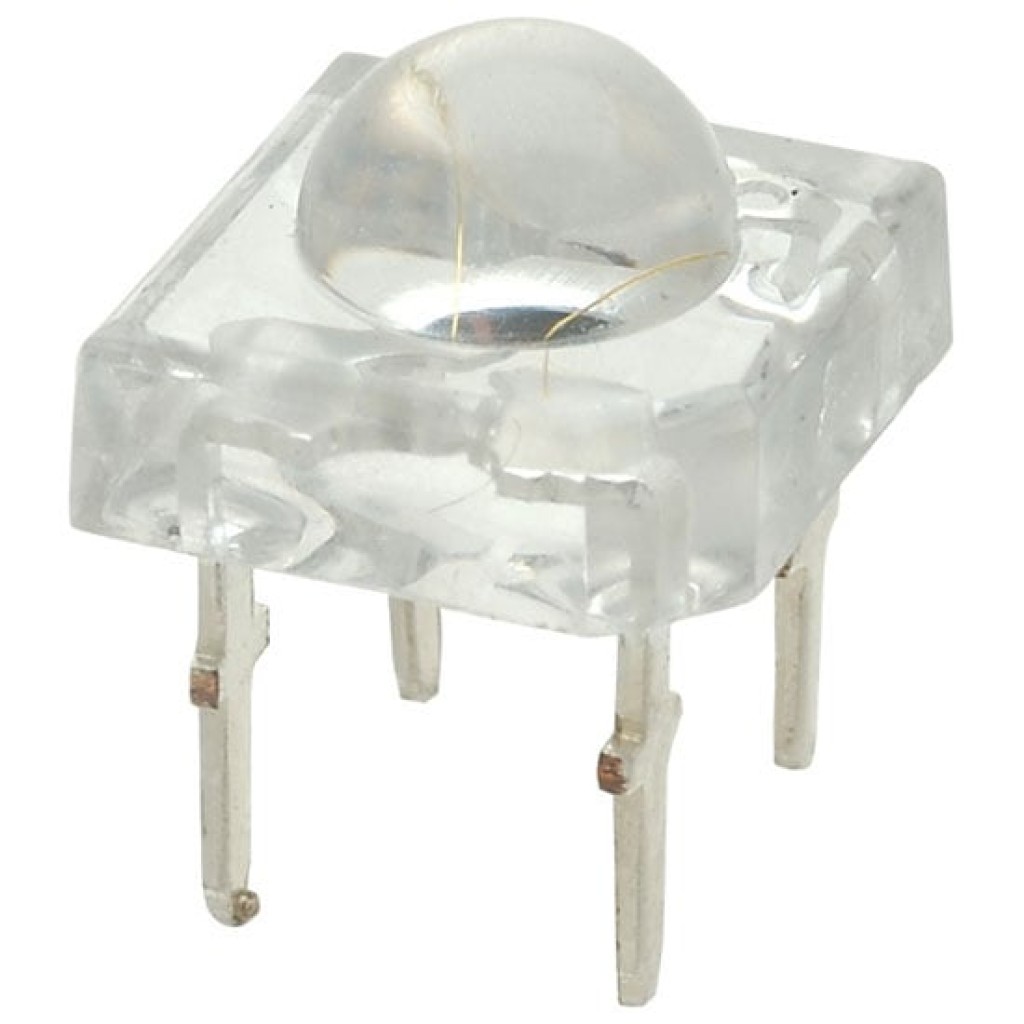

Piranha Superflux LED

5mm in Size

5mm Piranha LEDs are some of the brightest LEDs for their size, and are also known as Superflux LEDs which have a large lens to produces a wide angle beam, are great for custom installations which an extremely bright and wide angle light is needed. Great for custom installation in which a wide angled light is needed. Using the 5mm Piranha LED will give you very good results, and offers a unique lighting approach to any of your projects.

Piranha Superflux LED Pinout

Model: W1302-01 - White
Color Frequency: .31 x .32 (White)
Luminous Intensity: 17,000mcd
Viewing Angle: 130°
Forward Voltage: 3.1v - 3.4v
Typical Voltage: 3.1v
Typical Forward Current: 20mA
Style: 5mm Water Clear Lens


Model: R1302-01 - Red
Color Frequency: 625nm (Red)
Luminous Intensity: 7,600mcd
Viewing Angle: 130°
Forward Voltage: 1.8v - 2.2v
Typical Voltage: 2.0v
Typical Forward Current: 20mA
Style: 5mm Water Clear Lens


Model: G1302-01 - Green
Color Frequency: 520nm (Green)
Luminous Intensity: 16,000mcd
Viewing Angle: 130°
Forward Voltage: 3.0v - 3.4v
Typical Voltage: 3.2v
Typical Forward Current: 20mA
Style: 5mm Water Clear Lens


Model: B1302-01 - Blue
Color Frequency: 470nm (Blue)
Luminous Intensity: 8,500mcd
Viewing Angle: 130°
Forward Voltage: 3.0v - 3.4v
Typical Voltage: 3.2v
Typical Forward Current: 20mA
Style: 5mm Water Clear Lens


For more information and technical details on our complete LED product line, please visit our Support Site.


Package of 10 Pieces
Bulk packaged for larger quantities

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Piranha SuperFlux Super Bright LED

Package of 10 Pieces
  • Product Code: LED-Piranha
  • Availability: In Stock
  • $3.00 USD


  • 3 or more $2.95 USD
  • 5 or more $2.85 USD
  • 10 or more $2.70 USD
