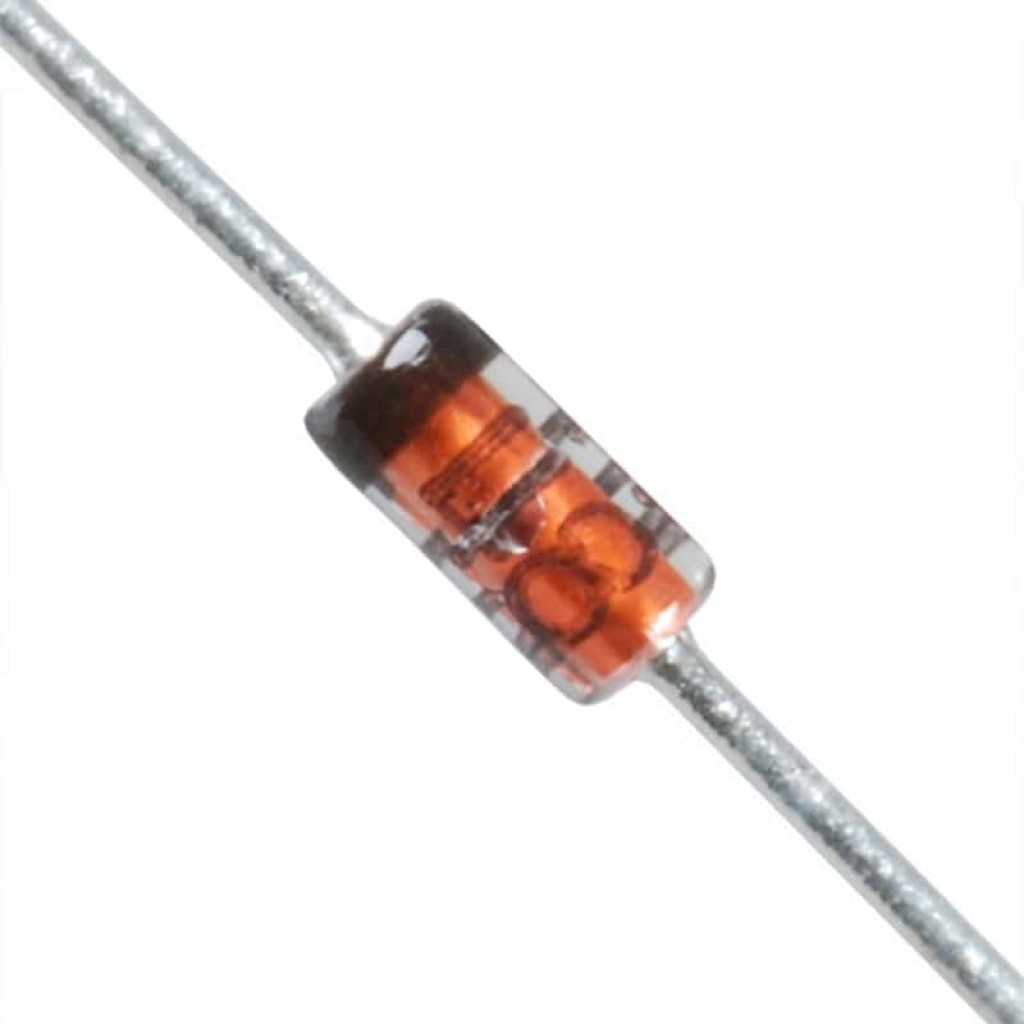

• 1N4148 / 1N914 Signal Diode

1N4148 / 1N914 Overview

The 1N4148 is a standard silicon switching signal diode. It is one of the most popular and long-lived switching diodes because of its dependable specifications and low cost. Its name follows the JEDEC nomenclature. The 1N4148 is useful in switching applications up to about 100 MHz with a reverse-recovery time of no more than 4 ns.

1N4148 / 1N914 Specifications

Voltage - DC Reverse (Vr) (Max): 75V
Current - Average Rectified (Io): 150mA
Voltage - Forward (Vf) (Max) @ If: 1V @ 10mA
Speed: Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr): 4ns
Current - Reverse Leakage @ Vr: 5µA @ 75V
Capacitance @ Vr, F: 4pF @ 0V, 1MHz
Thermal Resistance: 300°C/W Ja
Mounting Type: Through Hole
Package / Case: DO-204AH, DO-35, Axial
Supplier Device Package: DO-35
Operating Temperature - Junction: -65°C ~ 175°C
Other Names: 1N4148CT,1N4148CT-ND, 1N4148DICT, 1N914
Package of 10 Pieces

Write a review

Note: HTML is not translated!
    Bad           Good

1N4148 / 1N914 Signal Diode

Package of 10 Pieces
  • Product Code: 1N4148 (Package of 10 Pieces)
  • Availability: In Stock
  • $0.90 USD
