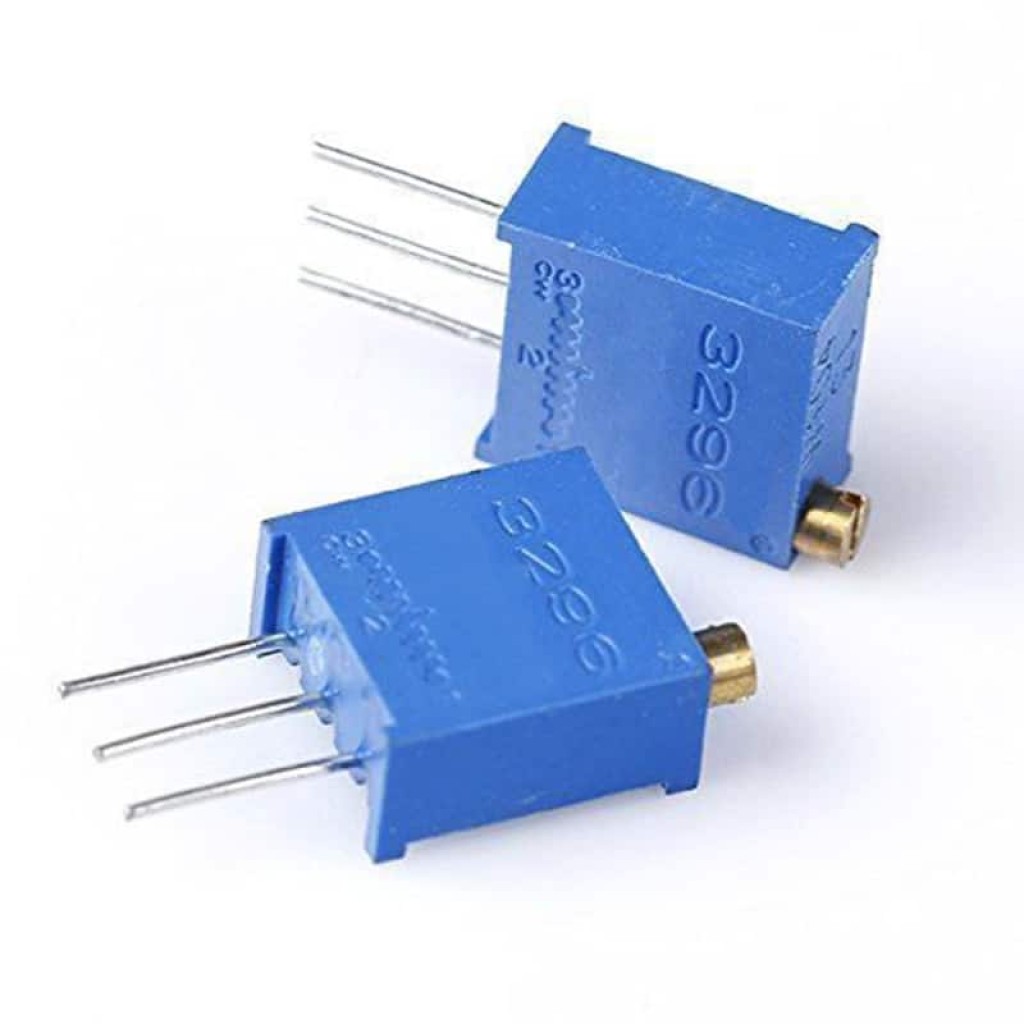

3296 Style Trimpot Potentiometer

Assorted Values Available

Trimpots, also known as potentiometers, are multi-turn adjustable resistors used for adjustment, calibration, and tuning purposes in circuits. They are easily mountable on PCB boards with a pin spacing of 0.1-inches and adjusted by a screwdriver. The internal resistive track is a carbon composition or cermet.



3296 Trimpot Pinout

3296 Trim Pot Pinout

To use a trimpot potentiometer, connect the CCW (pin 1) and CW (pin 3) terminal with positive supply and ground terminal, respectively. A variable output will be present at the wiper terminal (pin 2). To adjust output value, rotate the screw on the top of the trimpot, which rotates the wiper inside the potentiometer, and varies the resistance.



3296 Trimpot Mechanical Dimensions



3296 Trim Pot Mechanical Dimensions

Write a review

Note: HTML is not translated!
    Bad           Good

3296 Style Trimpot

Range of Values Available
  • Product Code: 3296-trimpot
  • Availability: In Stock
  • $0.40 USD


  • 5 or more $0.35 USD
