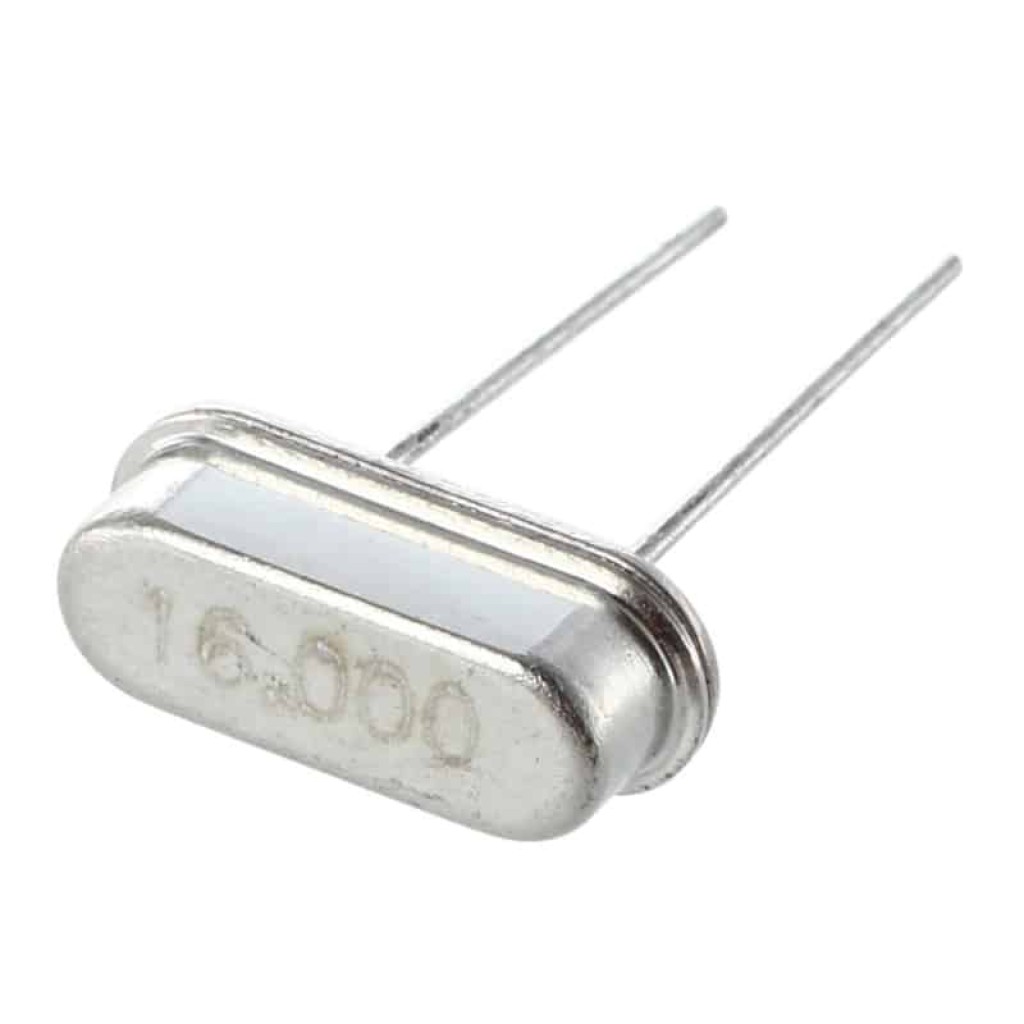

16MHz Crystal Oscillator

Low Profile HC-49S Case Style

Keep your microcontroller tickin' with a fancy timing crystal. This 16.000 MHz model comes in an HC49S (short style) standard package and is breadboard friendly and easy to use with any microcontroller or device that requires an external crystal.

The crystal has 20PPM tolerance, 20PPM stability, so it's perfect for high precision needs (USB timing, long-term time-keeping, RF/PLL/VCO driving).

To use, connect the two pins to XTAL-in and XTAL-out on your circuit (the package is symmetric, so use whichever pin) and one capacitor (22pf) each from a crystal pin to ground.

Specifications:

• Frequency: 16MHz
• Case Style: HC-49S (Low Profile)
• Load Capacitance: 22pF
• Frequency Tolerance: +/-20 ppm
