DB25 Male to 25‑Position Screw Terminal Breakout Board

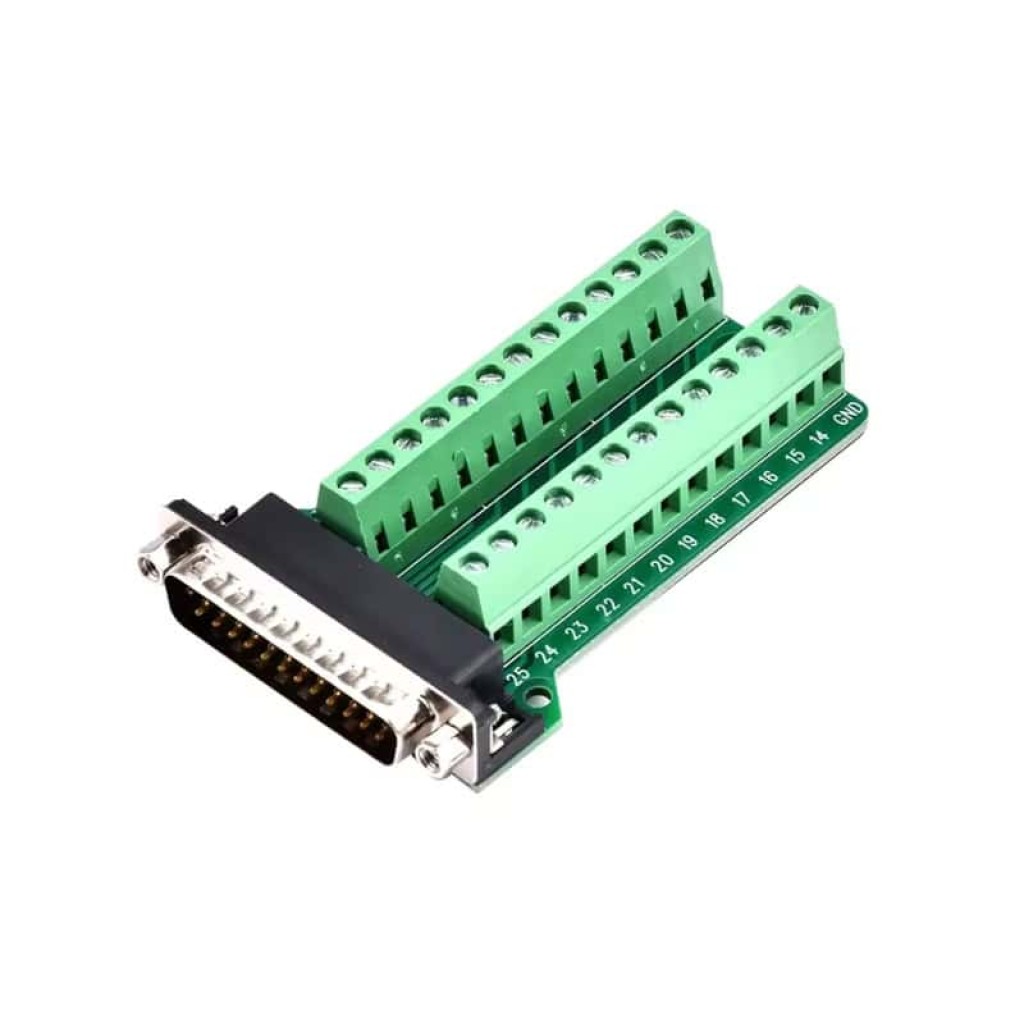

A DB25 Male to Screw Terminal Breakout Board provides a simple and reliable way to access all 25 pins of a standard DB25 connector. Each pin is routed to a clearly numbered screw terminal, allowing fast connection of sensors, switches, relays, control signals, or other external wiring.

The board includes a high‑quality DB25 male connector, dual rows of terminal blocks, and silkscreen pin numbers for quick identification. No soldering is required—simply tighten the terminals and you are ready to work.

Common Applications

• CNC machines and breakout panels
• Parallel‑port interfacing
• Industrial automation and PLC wiring
• Test fixtures and prototyping
• Signal routing and custom electronics

Features

• DB25 male connector
• 25 screw terminals, each directly mapped to its DB25 pin
• Clear printed numbering for easy wiring
• Strong, secure terminal blocks
• Compact PCB layout
• No soldering required

Dimensions

The DB25 Male to Screw Terminal Breakout Board features a compact layout suitable for CNC panels, automation enclosures, and laboratory test fixtures. Exact board measurements are shown in the included technical drawing.

• Overall length: 80.0 mm
• Board width: 41.0 mm
• Rear connector depth: 15.5 mm
• Terminal block height: 18.0 mm
• DB25 connector body height: 16.0 mm
• Mounting edge width: 15.4 mm (left side)
• Terminal positions: Numbered 1–25

The included dimensional diagram provides top and side views to assist with enclosure design, mechanical layout, and clearance planning.
