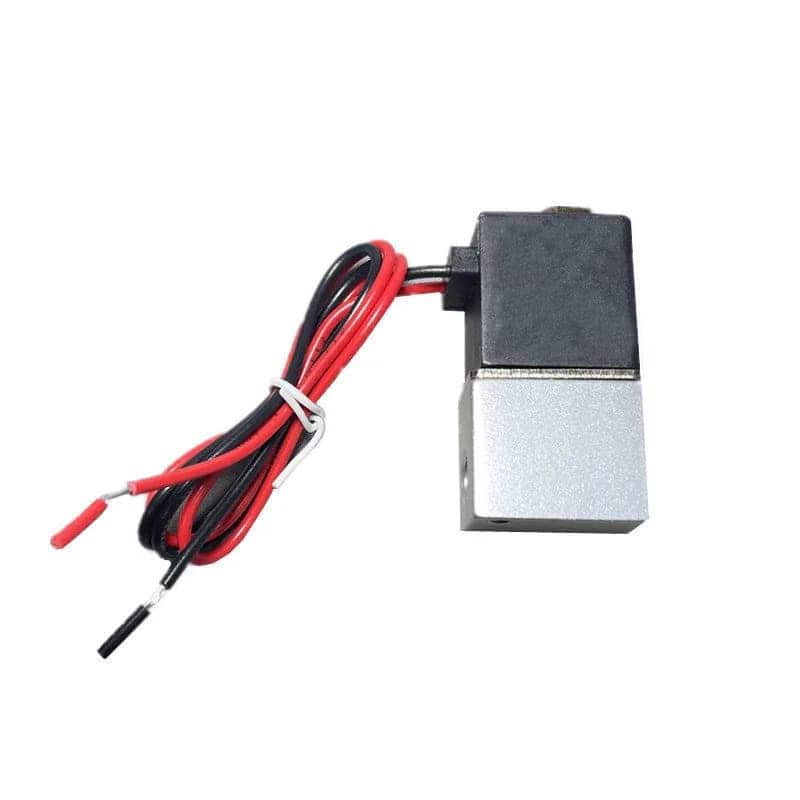

Fast Response Pneumatic Solenoid Valve

Remotely Control Air or Gas

Pneumatic solenoid valves allow for remote control by sending low-power electrical signals over distances to activate or deactivate the valve.

This valve is particually useful in controlling air to Laser Engravers or CNC machines.

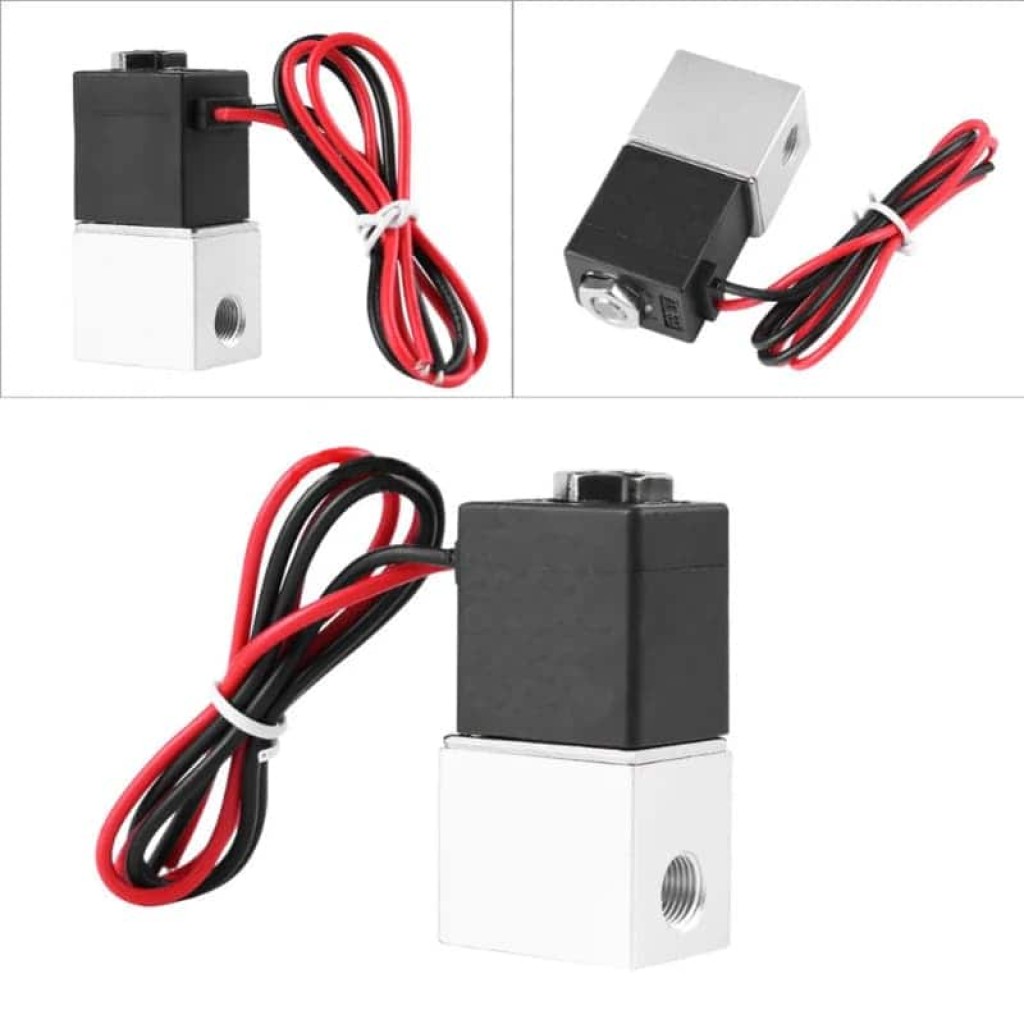

• Model: 2V025-1/4-DC24V
• Body Material: Aluminum
• Valve Type: 2 Way Normally Closed (Valve opens with energized)
• Port Size: 1/4" NPT Female Port
• Coil Voltage: DC24V
• Service Media: Air, Gas
• Operation Model: Direct Acting Flow Model: Uni-Directional
• Response Time: Less than 50 ms
• Operating Pressure: 1.2Mpa (can operate at 0 PSI - Vacuum)
• Operating Temperature: -10 to 80 °C

See our PC6-02 (male) or PCF6-02 (female) connectors compatible with the solenoid.

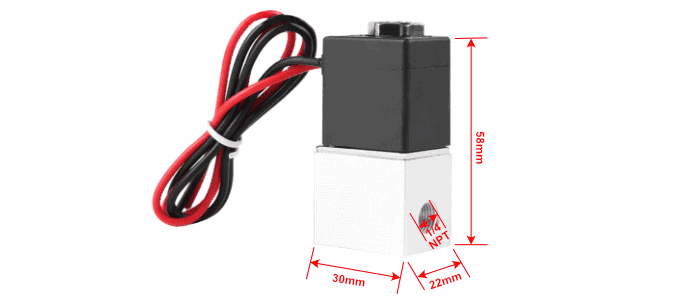

Solenoid Dimensions

Usage with Ruida Controllers

One of the most common controllers on laser cutters is the Ruida controller family. These controllers feature Wind and +24V terminals where the Solenoid can be connected.

A great resource with more information on hookup and usage can be found in this YouTube video.
