IR Avoidance Sensor

Detects From 2 to 30cm

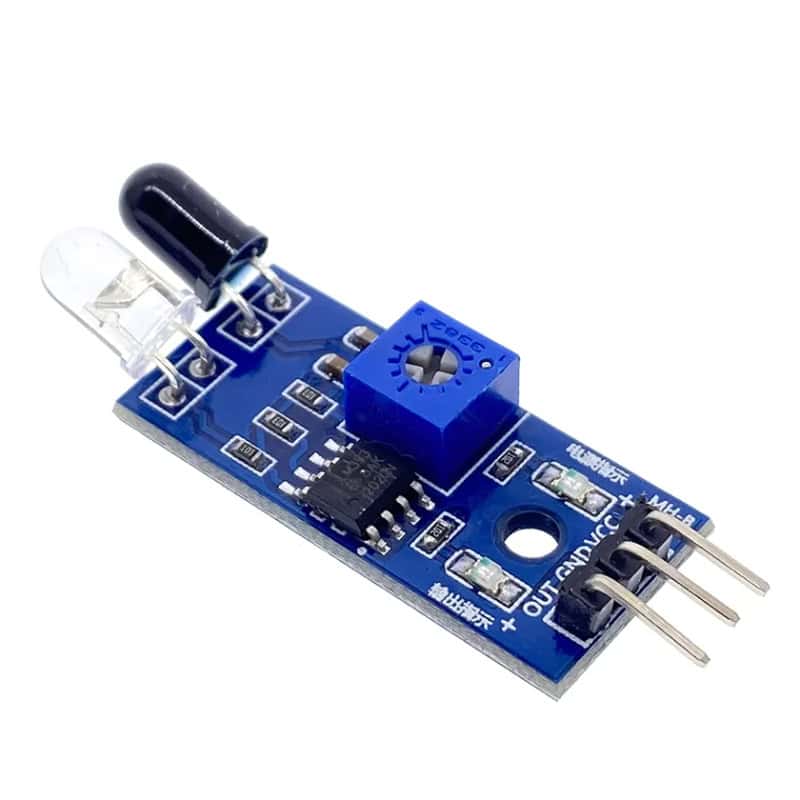

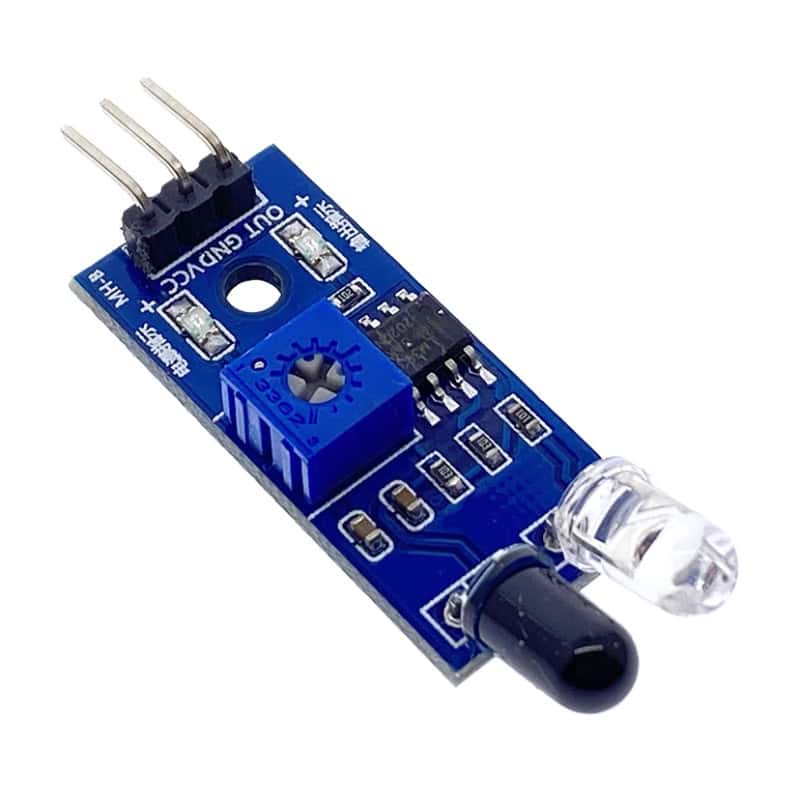

This module is an inexpensive solution for an obstacle avoidance sensor, perfect for robotic projects and very easy to interface directly with Arduino and compatible boards. The module has a single potentiometer for adjusting the sensitivity.

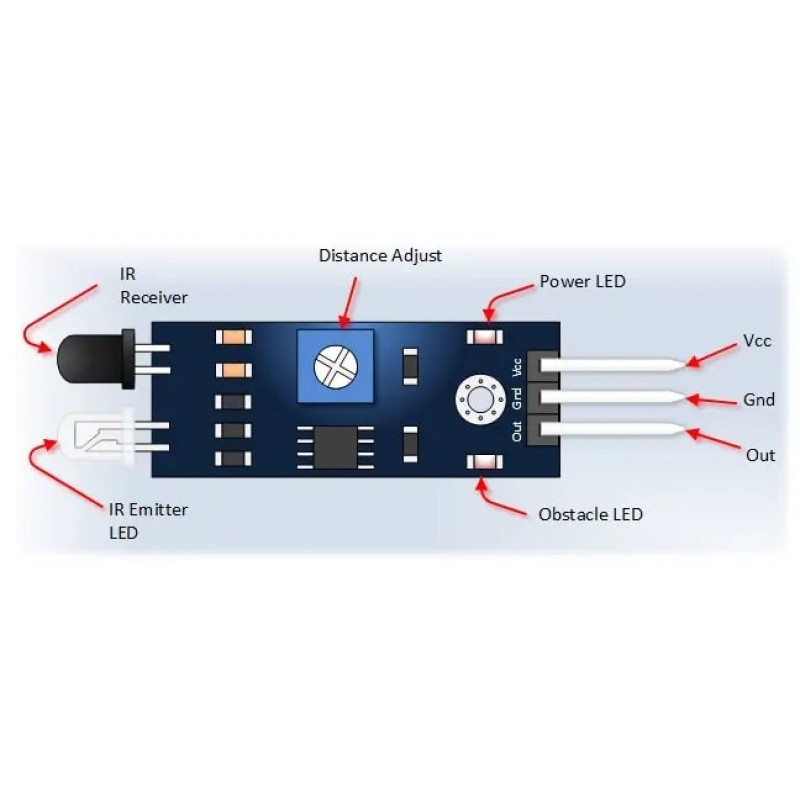

This sensor module comprises an IR transmitter and IR receiver. The IR transmitter continuously emits an IR signal which is then reflected by an obstacle and is then detected by the IR receiver.

Interface

VCC: external 3. V-5V voltage (can be directly connected to 5v MCU and 3.3v MCU)
GND: GND External
OUT: small board digital output interfaces (0 and 1)
Detection Angle: 35 °

Application Notes

We have an Application Note (in PDF format) on details of the IR Avoidance Sensor along with an example Arduino sketch for using the module.
