30cm (11.8-inch) Total Connected Length
The JST SM 6-Pin Connector Set is a pre-wired male and female connector pair ideal for LED strips, low-voltage wiring, automotive electronics, control systems, and general-purpose electronic projects.
This set includes one male connector and one female connector pre-wired with 22AWG stranded wire leads. Each connector assembly includes approximately 15cm of wire, providing a total connected length of 30cm when mated together.
The JST SM series connector features a polarized design and integrated locking latch that helps prevent accidental disconnection and incorrect mating orientation.
Features
- Complete male and female connector pair
- 6-pin JST SM connectors
- 22AWG stranded wire leads
- Polarized connector design
- Locking latch for secure connection
- Approximate wire length per side: 15cm
- Total connected length: 30cm
- Pre-stripped and tinned wire ends
- Suitable for LED lighting and electronic projects
Applications
- LED strip lighting
- RGBW and multi-channel LED systems
- 3D printer and CNC controller wiring
- Automotive electronics
- Low-voltage power distribution
- Control systems and sensors
- DIY electronics projects
Package Includes
- 1 × JST SM 6-pin female connector with 15cm wire lead
- 1 × JST SM 6-pin male connector with 15cm wire lead

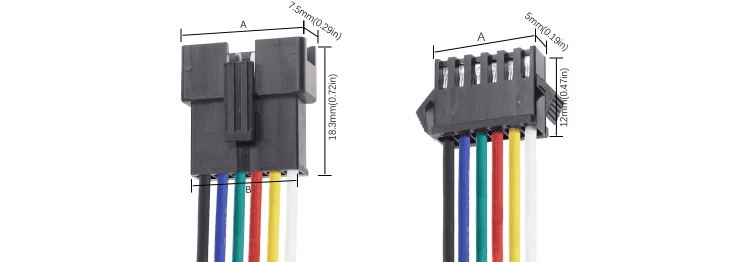

Specifications
| Connector Type | JST SM |
| Number of Pins | 6 |
| Wire Gauge | 22AWG |
| Wire Length Per Side | 15cm |
| Total Connected Length | 30cm |
| Wire Type | Stranded |
| Connector Style | Male/Female Locking Pair |
| Connection Type | Polarized |
| Color | Multi-Colored Leads |
| Light Packet | |
| Package Type | Light Packet |

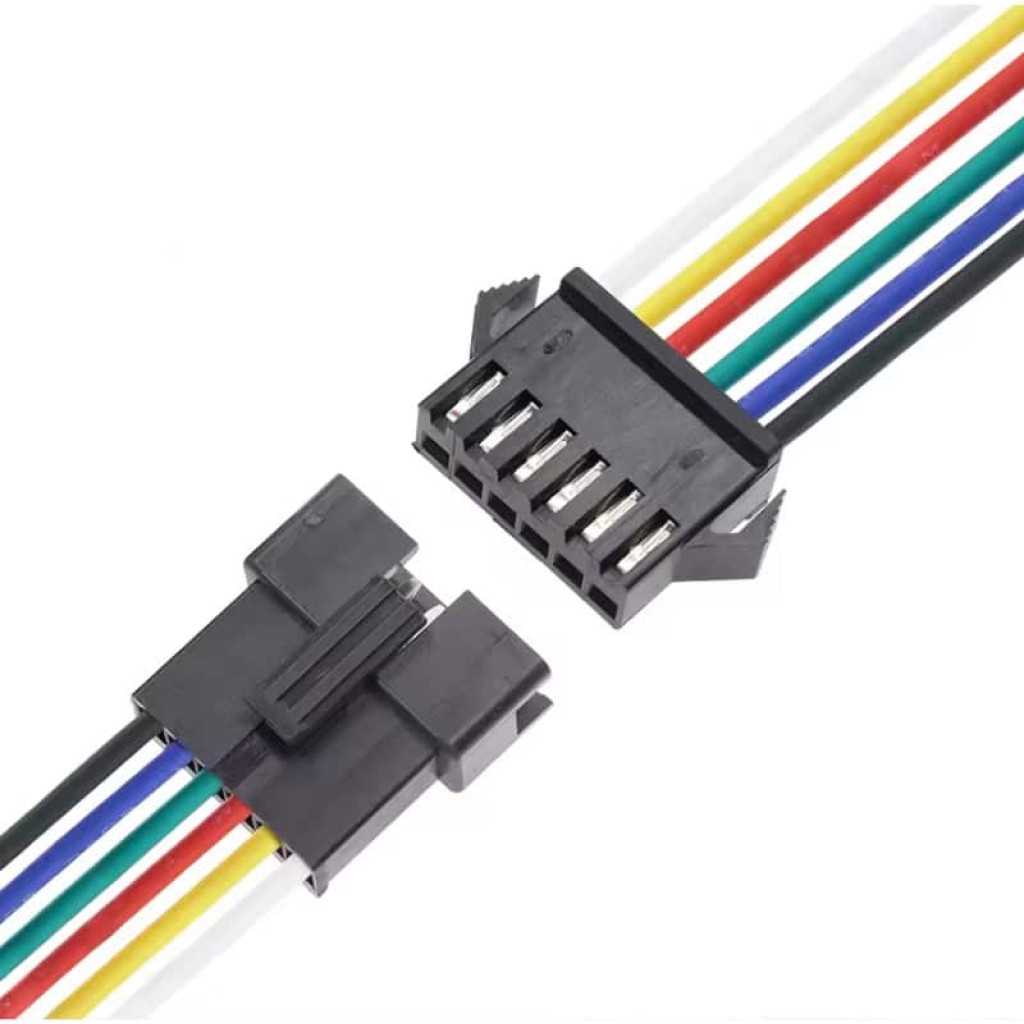

JST SM 6-Pin Connector Set with 30cm 22AWG Cable
- Product Code: JST SM 6-Pin Connector Set
- Availability: In Stock
- Light Packet Shipping Eligible
-
$1.60 USD
