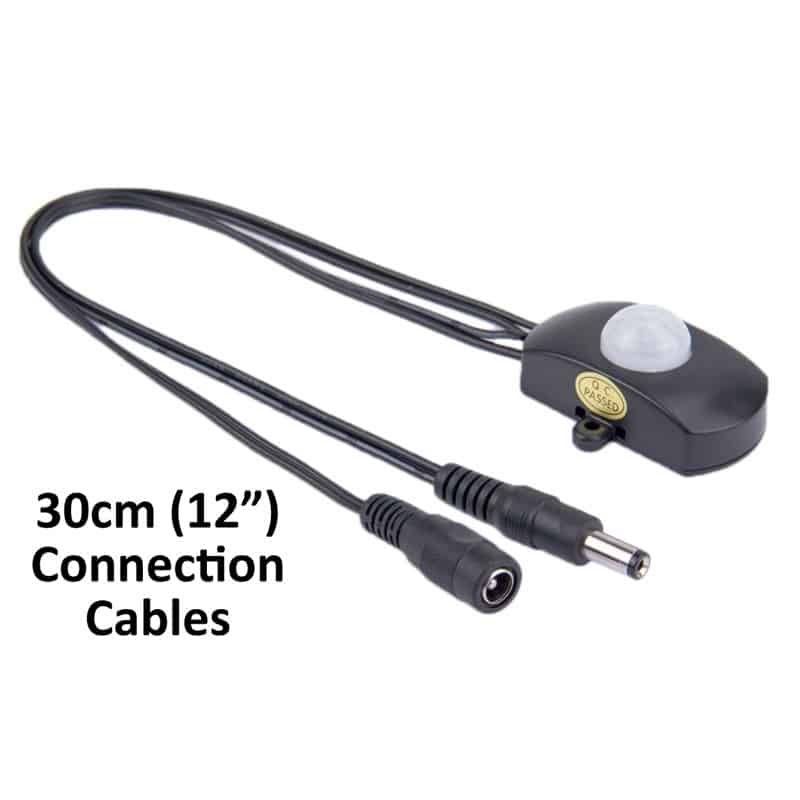

Infrared PIR Motion Detector Switch

6v to 24v DC Operation - Use with LED Strips and Modules

Sensor activates when it detects body motion within 5m (16.5 feet) of the device. The sensor detects movement in a 120-degree cone.

Great for controlling LED strips and modules.

Wider Power Range: Although this item is listed with a voltage range of 6-24V, we have tested these at 5V operation along with many customers, all which have had no troubles running at 5-volts.

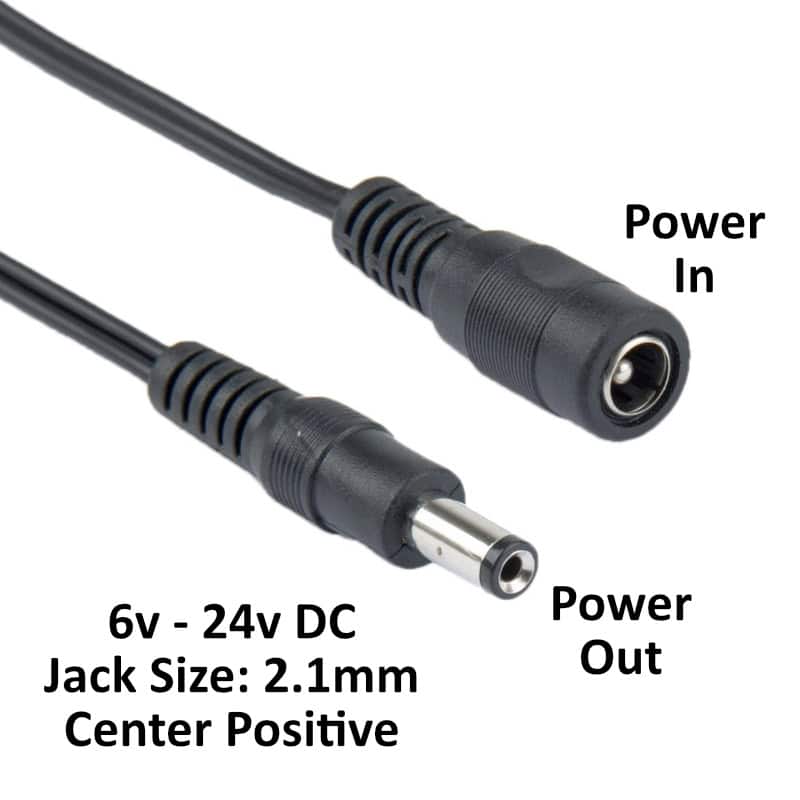

Connection to the unit is through a pair of 2.1mm male/female connectors.

Output is adjustable from 15 seconds through the internal adjustment from the easily removable case. When a detection is made, the device will switch on the output and can drive loads up to 5A at 24v DC.

Sensing is optimized for usage in dark areas such as in the hallway, corridor, closets, cabinets, bathrooms, basements, warehouses, garages and other places where automatic lighting would be beneficial.

Module includes two mounting holes along with an adhesive double-sided tape pad and two self-tapping screws.

Specifications:

Size: Sensor measures 50mm long by 40mm wide x 23mm tall
Operating Voltage: 6V – 24V DC

Maximum Current: 5A (3A continuous)
Delay Range: Adjustable from 15 seconds
