Ultra-high precision low-cost digital temperature meter - allows you to put a digital thermometer anywhere with this very handy display package. Use to monitor the temperatures of equipment, solar panel installation, amateur radio stations, CNC or laser engraver equipment or chillers, wine, and beer making installations. The Digital Temperature meters, are available in three display colors, with 0.56” display and display temperature in degrees Celsius.

TECHNICAL DETAILS

Specifications

Display Color: Red, Green, or Blue
Display Mode: 0.56" LED digital display

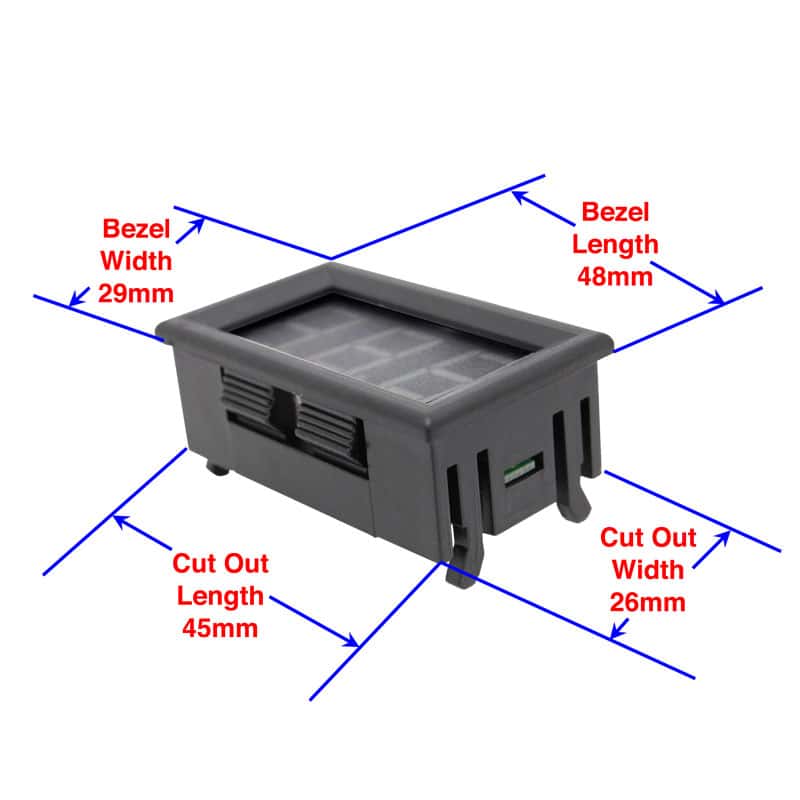

Physical Size: 48 x 29 x 26 mm (L x W x H)
Opening Size: 45 x 26 mm (L x W)
Supply Voltage: 5-15v DC
Measurement Range: -50c to 110c
Operating Temperature: -10c to +65c
Display Refresh Rate: 200mS (5 times per second)
Measurement Accuracy: 0.1c
Connection: Power (Red to Positive, Black to Negative)
Sensor: B3950-10K, waterproof sensor, wire length 100mm

Display Color

Available in Red, Green, Blue

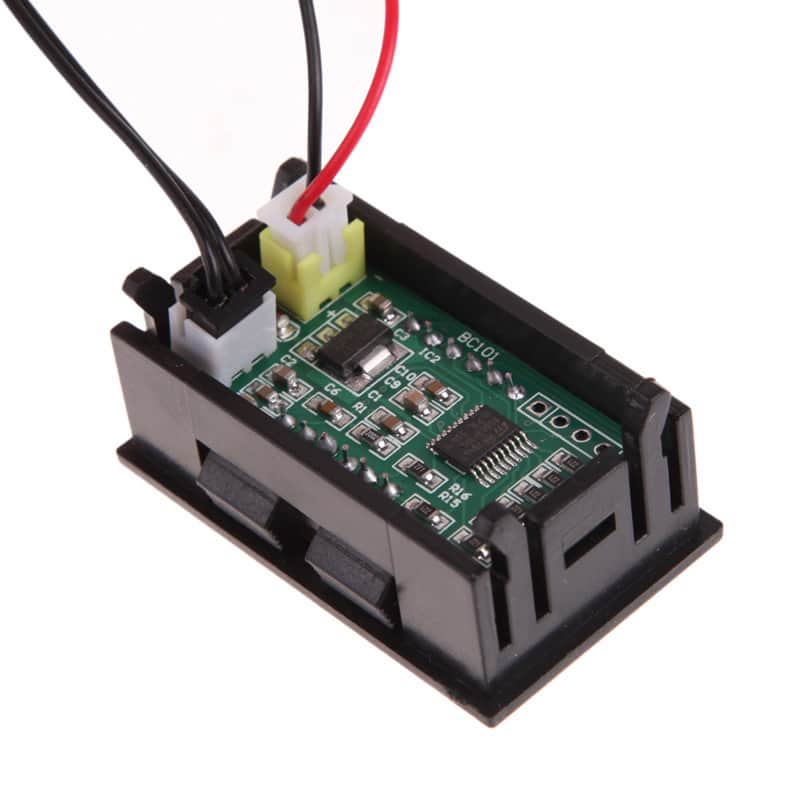

Wiring

Supply Power
Thin Black: Power supply – (negative)
Thin Red: Power supply + (positive)
