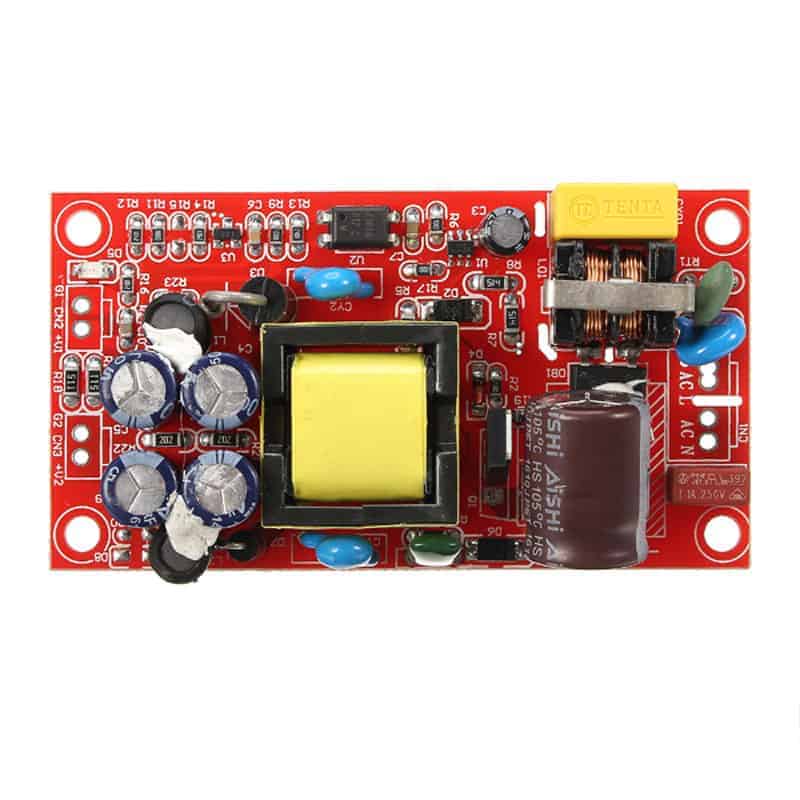

12V 1A and 5V 1A Switching Power Supply

Dual Outputs

The power supply is a fully isolated output industrial grade power module with temperature, overcurrent, and short circuit protection. It features AC85 ~ 265V wide voltage input range with a DC 12V 1A  and 5V 1A dual voltage isolated outputs.

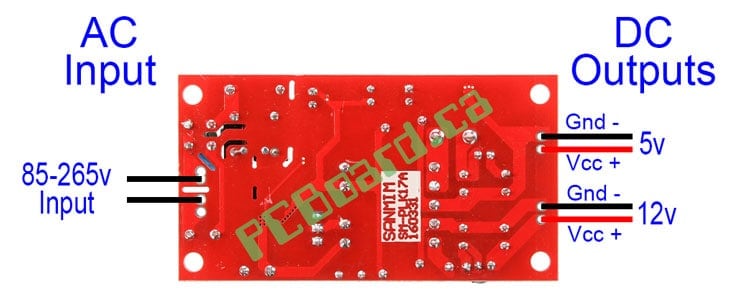

Connections:

Specifications:

Working Temperature: -20 to 60 C
Relative Humidity: 40 to 90% non-condensing
Input Voltage: 85 to 265V AC (Typical 110/220V)
Input Current: 0.027A (AC 110V) or 0.014A (AC 220V)
Input Current Surge: 20A (under full load)
Efficiency: ~76%
Outputs: Dual voltage isolated
Output +12V: Minimum 0A, Maximum 1A (11.8V-12.5V)
Output +5V: Minimum 0A, Maximum 1A (4.9V-5.1V)
Board Size: 7.6 x 4.1 x 2.2 cm
