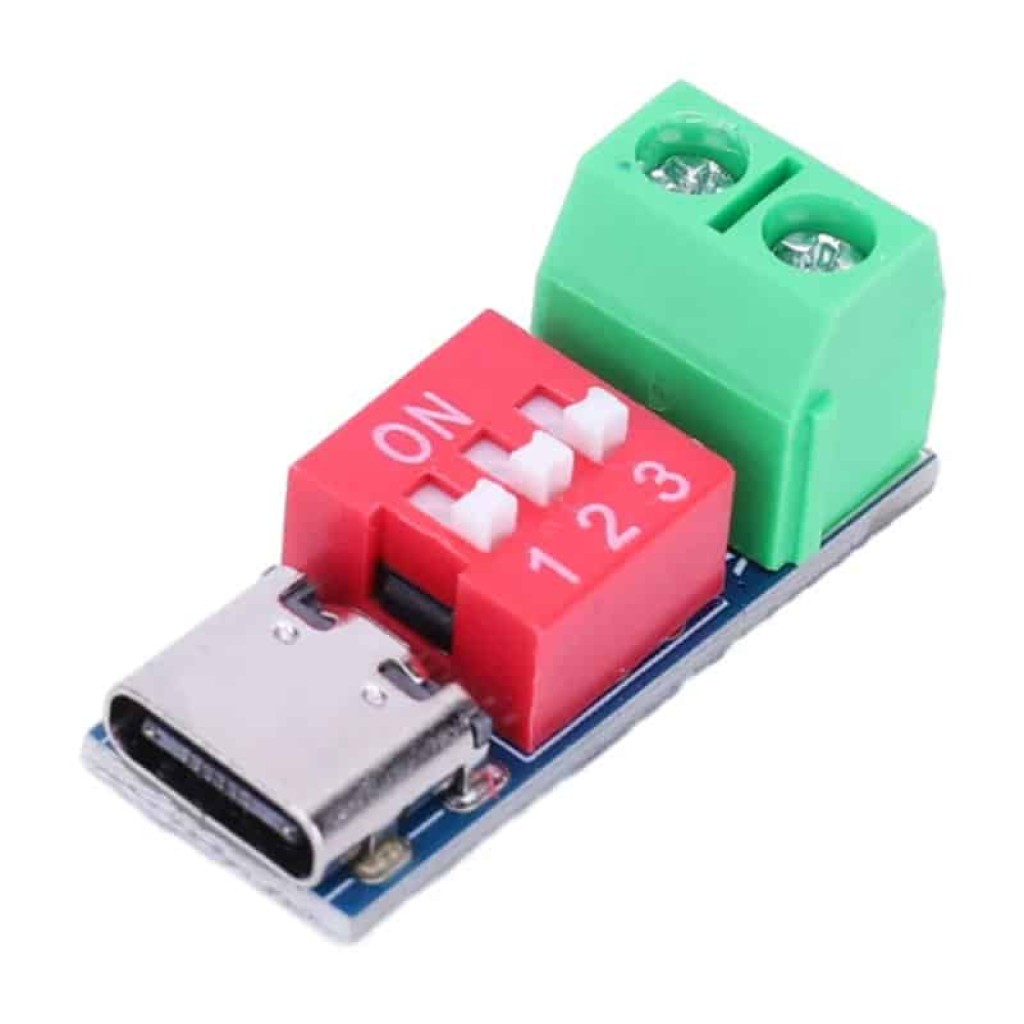

PD-QC USB-C Decoy/Spoof Module

Provides 5V, 9V, 12V, 15V or 20V Output

Type-C USB adapters are plentiful and feature broad voltage delivery capabilities. This module takes a Type-C USB connection and allows you to select 5, 9, 12, 15, or 20-volt outputs with a maximum of 100 watts (limited by your power adapter).

The board spoofs (tricks) the USB power adapter to output the voltages you desire by selecting the output voltage with solder-bridge jumpers to select the desired voltage.

The board supports multiple fast-charging protocols, including PD2.0, PD3.0, PPS, QC2.0, QC3.0, FCP, and AFC. Keep in mind that this board will only output voltages that your power adapter can supply. It is not uncommon for some adapters/chargers to not provide 12V output.

• UGREEN CD226 Charger: Provides 5V, 9V, 12V, 15V and 20V (all outputs)
• Anker 511 Charger: Provides 5V, 9V, 15V and 20V
• Google G9BR1 Power Adapter: Provides 5V, 9V, 15V and 20V

The board measures only 28mm x 11mm (1.1-inch x 0.4-inch) with a USB Type-C power connector and rising clamp output terminals.

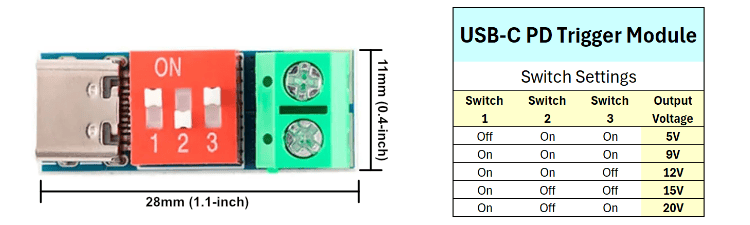

Dimensions and Switch Settings
