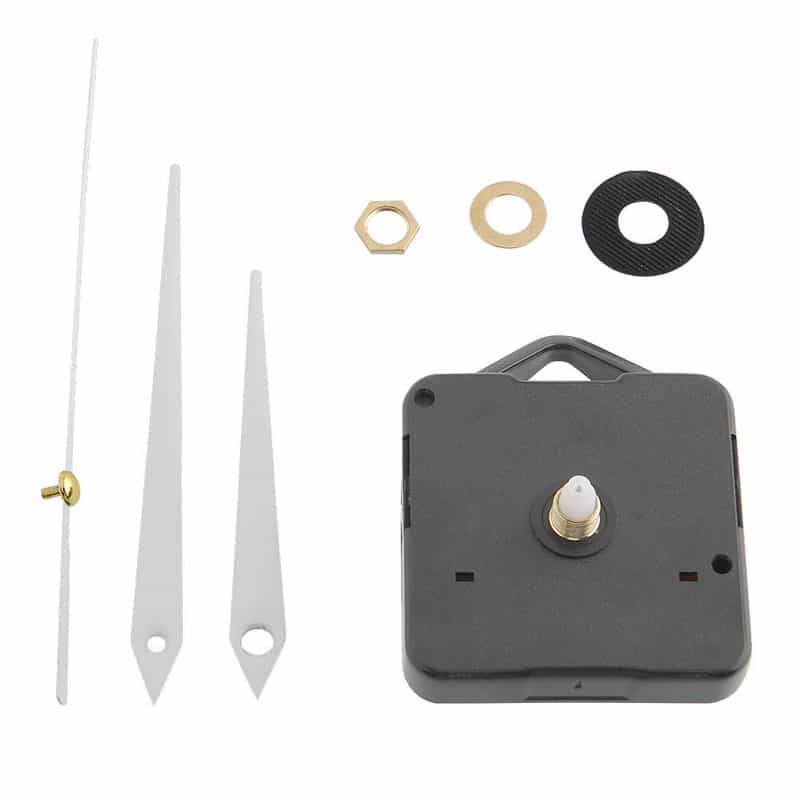

Quartz Clock Movement

White Hands

The quartz crystal oscillator has been used in laboratories since the 1920s and is prized for its extreme ability to measure precious movements such as the rotation rate of the Earth. The general public had to wait until the 1960s before quartz clocks and quartz clock movements were mass produced. Lucky for you, we live in a time when quartz clocks and time only clock movements are now available for purchase.

These mechanisms are a simple quiet design, great for DIY projects and are powered by one AA battery (not include).

The hands for this model consists of white hours, minutes and seconds pointer.

Hour Hand Length: 3.3” (83mm)
Minute Hand Length: 4.3” (104mm)
Second Hand Length: 5.2” (132mm)
Shaft Diameter: 5/16” (0.3125” 7.9mm)
Maximum Panel Thickness: 5/32” (0.1575” 4.0mm)
Case Size: 2.25” x 2.25” x 0. 65” thick (57.2mm x 57.2mm x 16.5mm)
Mounting and Hand Holder Depth: 0.47” (11.8mm)

We have an alignment grid to aid in the position of your clock center and the clock hour positions divided into sizes from 4cm to 16cm diameter clock faces available in PDF format for download.
