DPDT Rocker Switch
16A or 40A Models Available

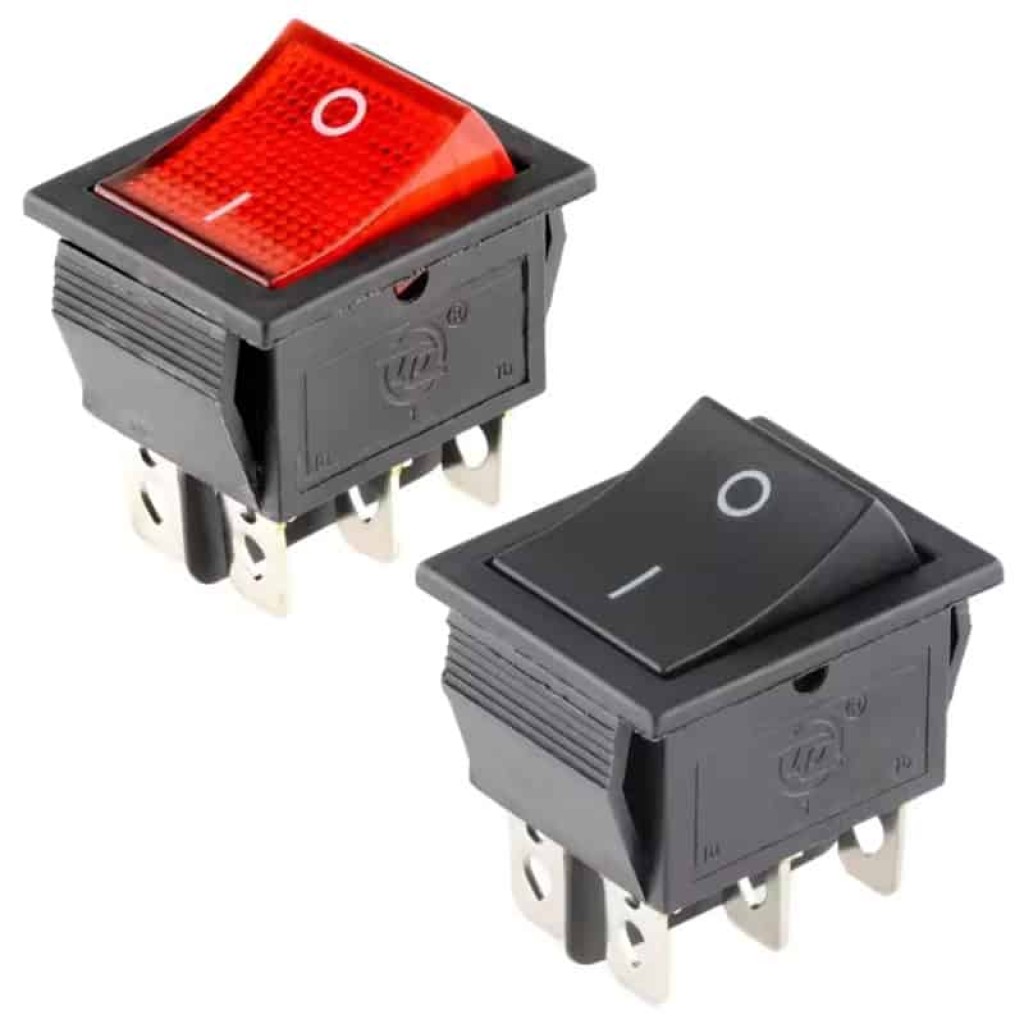

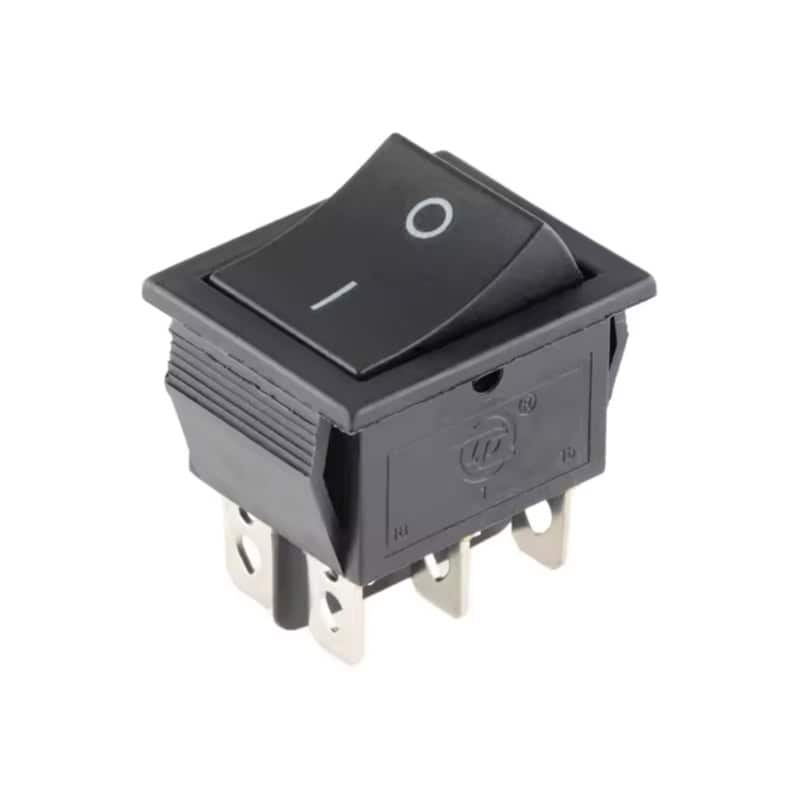

This switch is a small and extremely durable DPDT rocker switch, available in 16A or 40A models and with a built-in power LED (red key-top model). Being a rocker switch, its design minimizes wear and tear associated with frequent use.

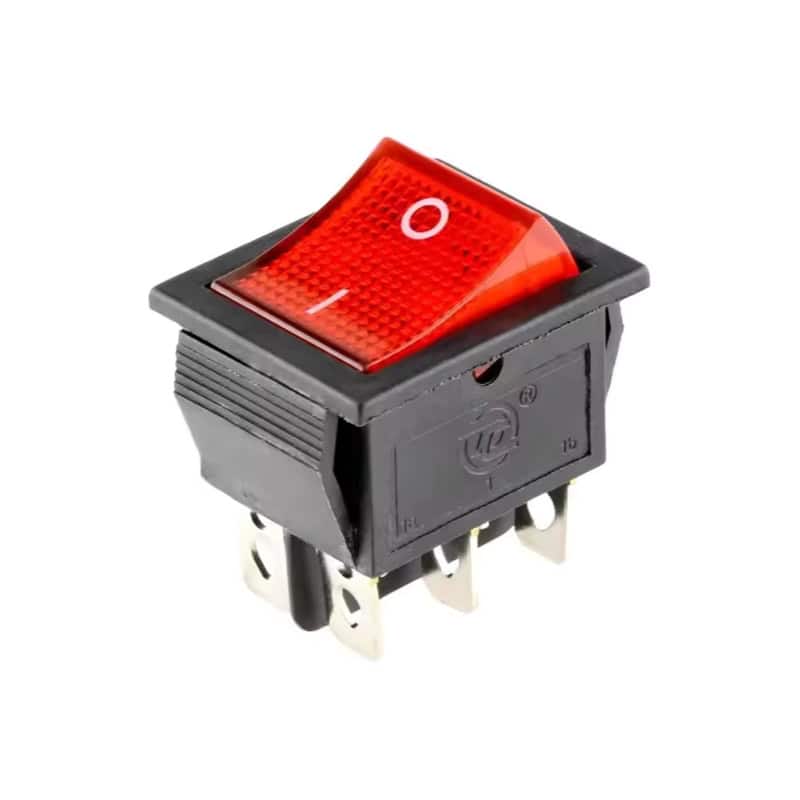

The red key-top model has a built-in LED indicator for 110-120V AC. The switch can be used at lower voltages, but the integrated LED will not illuminate.

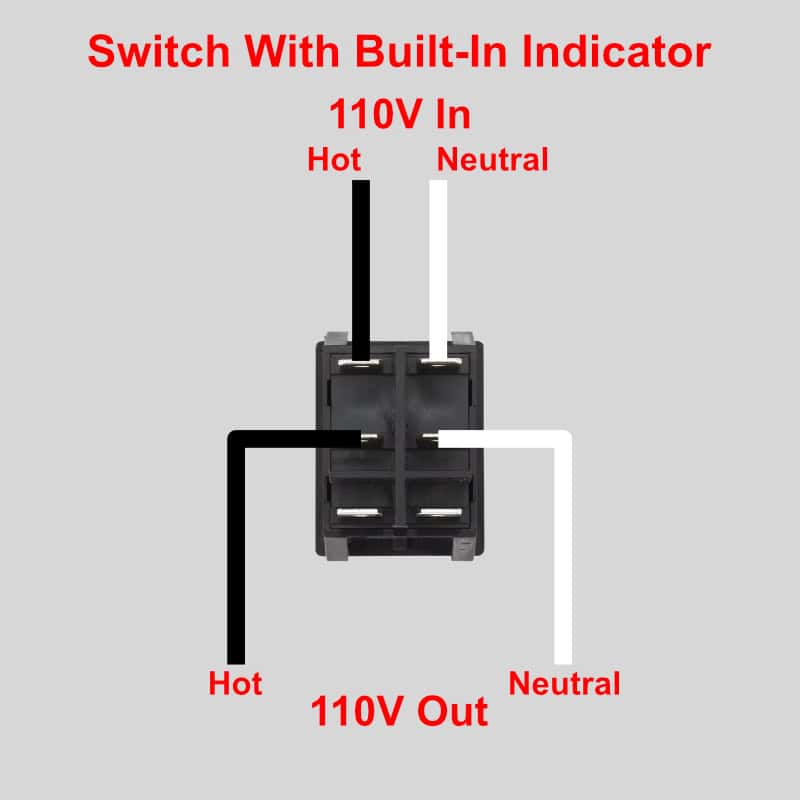

Connection Details For Built-In Indicator (Red Model Only)

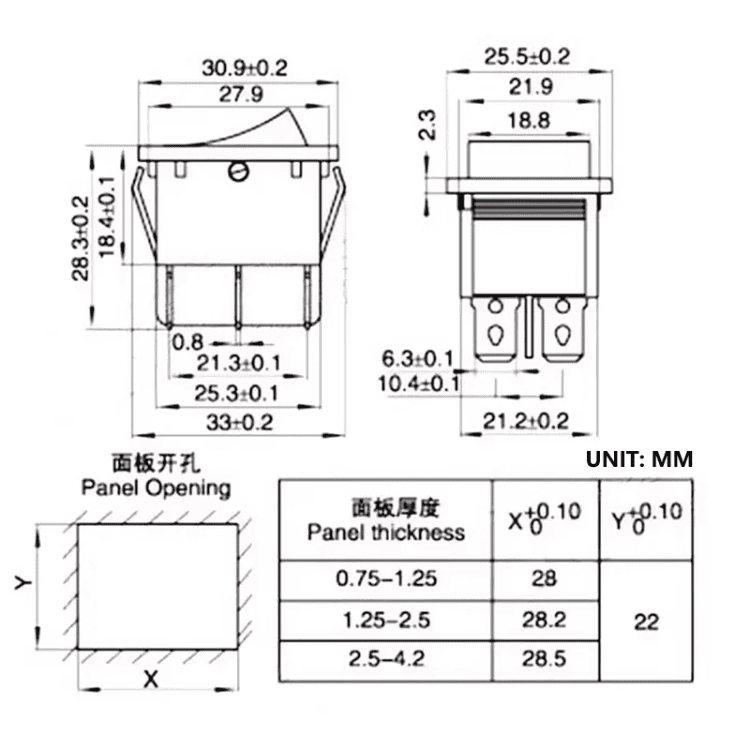

Dimensions and Panel Cutout Details
Rocker Switch
- Product Code: Rocker Switch
- Availability: In Stock
-
$2.50 USD
Available Options
