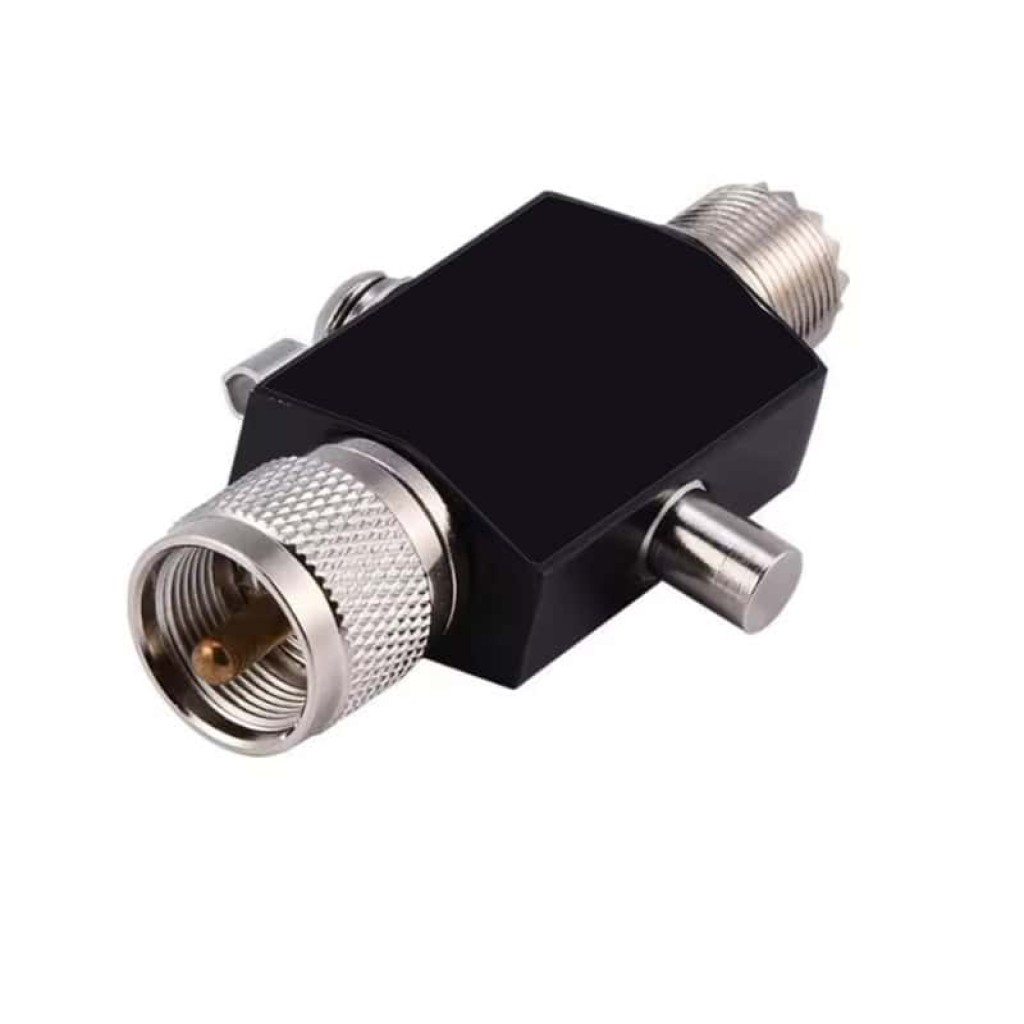

The UHF Lightning Surge Protector provides inline surge protection for coaxial feed lines using standard UHF connectors. Featuring a PL-259 (UHF Male) connector on one side and an SO-239 (UHF Female) connector on the other, it can be easily installed into many existing antenna systems without requiring additional adapters.

This protector utilizes gas discharge tube (GDT) technology, a commonly used protection method for RF and communications installations. Under normal operating conditions the protector remains non-conductive while allowing RF signals to pass. During a voltage surge event, the gas discharge element helps provide a path to ground when connected to a suitable earth grounding system.

An integrated grounding terminal allows the protector to be connected to a station ground. Proper grounding practices are essential for effective surge protection and equipment safety.

The compact metal housing makes this protector suitable for amateur radio stations, CB radio installations, scanner systems, repeater sites, monitoring equipment, and other outdoor antenna applications.

Features

• Gas discharge tube (GDT) surge protection technology
• PL-259 Male to SO-239 Female UHF connections
• Inline installation within coaxial feed lines
• Integrated grounding terminal
• Suitable for many 50 Ohm RF systems
• Compact and durable metal construction
• No adapters required for compatible UHF systems
• Designed for radio and antenna system protection

Applications

• Amateur radio stations
• HF, VHF and UHF antenna systems
• CB radio installations
• Scanner receiver systems
• Two-way radio systems
• Antenna feed line entry points
• Repeater and remote radio sites

Specifications

Note: Lightning and surge protection devices help reduce the risk of equipment damage but cannot provide complete protection from direct lightning strikes. Proper grounding and installation practices are required for effective operation.
