USB‑C Female Bulkhead to USB‑C Male Cable – 30 cm Panel‑Mount

This USB‑C Female Bulkhead Extension Cable provides a reliable, panel‑mountable USB‑C connection for enclosures, control panels, 3D‑printer builds, docking stations, automotive dashboards, kiosks, and other embedded applications. The threaded bulkhead connector allows secure mounting, while the included rubber gasket and locking nut ensure a tight and professional installation.

The attached 30 cm USB‑C male cable offers a clean, simple pass‑through to internal devices such as single-board computers, chargers, hubs, and USB‑C peripherals. The included dust cap protects the connector from debris when not in use, making this ideal for workshop, outdoor, or mobile environments.

Features

• USB‑C Female bulkhead panel‑mount connector
• USB‑C Male cable, 30 cm length
• Sturdy threaded mounting system with nut and gaskets
• Includes protective dust cap with tether
• Ideal for enclosures, equipment panels, and embedded designs
• Supports USB‑C data and charging pass‑through
• Durable moulded construction with strain relief

Specifications

• Cable Length: 30 cm (approx.)
• Connector A: USB‑C Female (bulkhead mount)
• Connector B: USB‑C Male

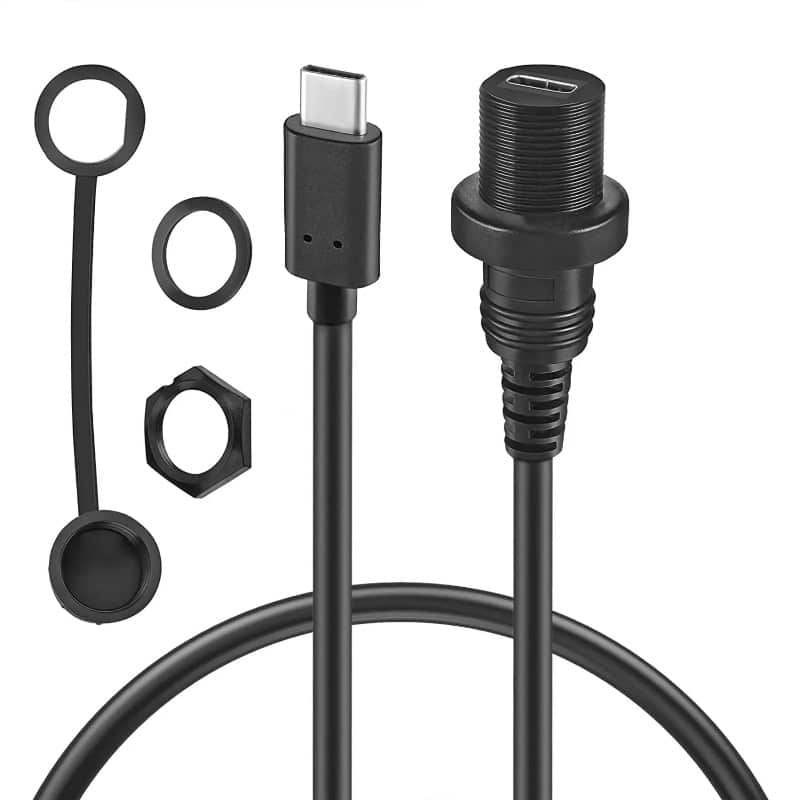

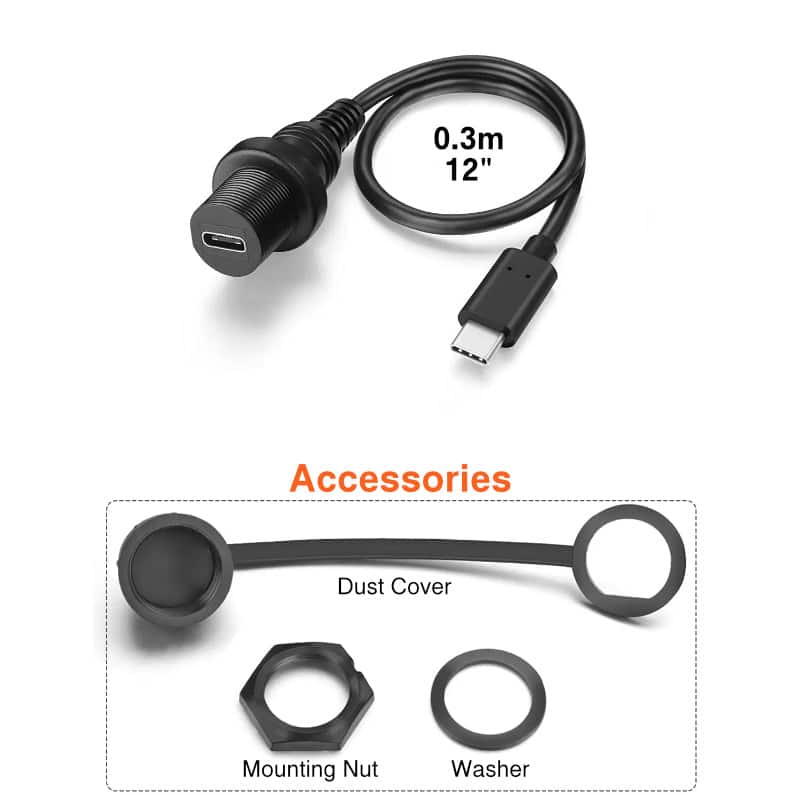

• Mounting Hardware: Lock nut, sealing washer, rubber gasket
• Dust Protection: Tethered rubber dust cap
• Cable Type: Shielded USB‑C extension cable
• Housing: Black moulded ABS with strain relief

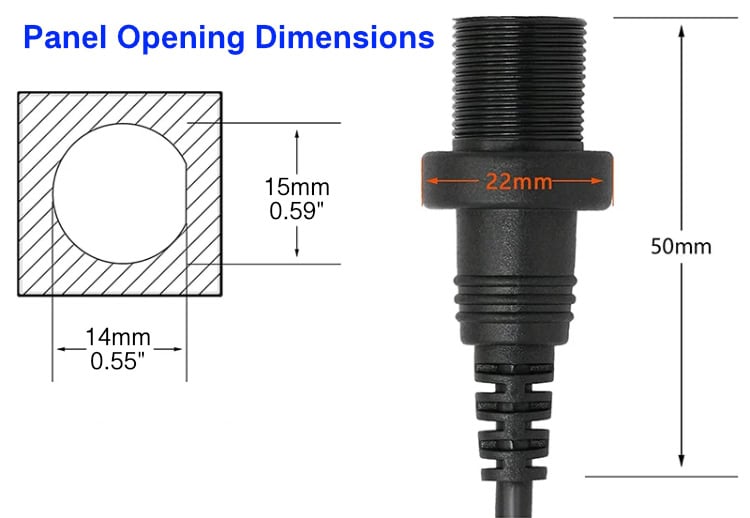

Dimensions and Panel Cutout
