CR2032 Battery Holder with Switch

Available as Bare Board, Kit or Fully Assembled

Alternate Part: We also carry a fully assembled slim-line case with an integrated on/off switch. See our CR2032 Slim Holder with Switch.

This unit has been discontinued and is now replaced with our updated model. It is available as a bare PCB or as a kit with all components.

This battery holder is by far the easiest way to add a single battery to a small design and includes a bonus power switch. This battery holder uses one Lithium CR2032 (20mm diameter, 3.2mm thick) sized coin cell resulting in 3v DC output. Lithium coin cells are not rechargeable, but they are inexpensive and very easy to find.

Perfect for soldering into a circuit or inserting the leads into a breadboard. Ideal for electronics projects, restorations, robotic designs, cosplay costume or driving LEDs.

The battery holder design users our Battery Box PC board. This small board measures only 38mm x 25mm (1.5-inch x 1-inch).

The holder is available as a DIY kit with parts including a side or top mounted switch; as a fully assembled unit or just a bare board so you can assemble your holder with parts from your collection.

Kit Includes:

• Battery Box CR2032 Custom PC Board
• CR2032 Coin Cell Battery Holder
• Mini Switch (choose either Top or Side Switch option)
• Pair of Connection Wires (7.5-inch / 19cm long)

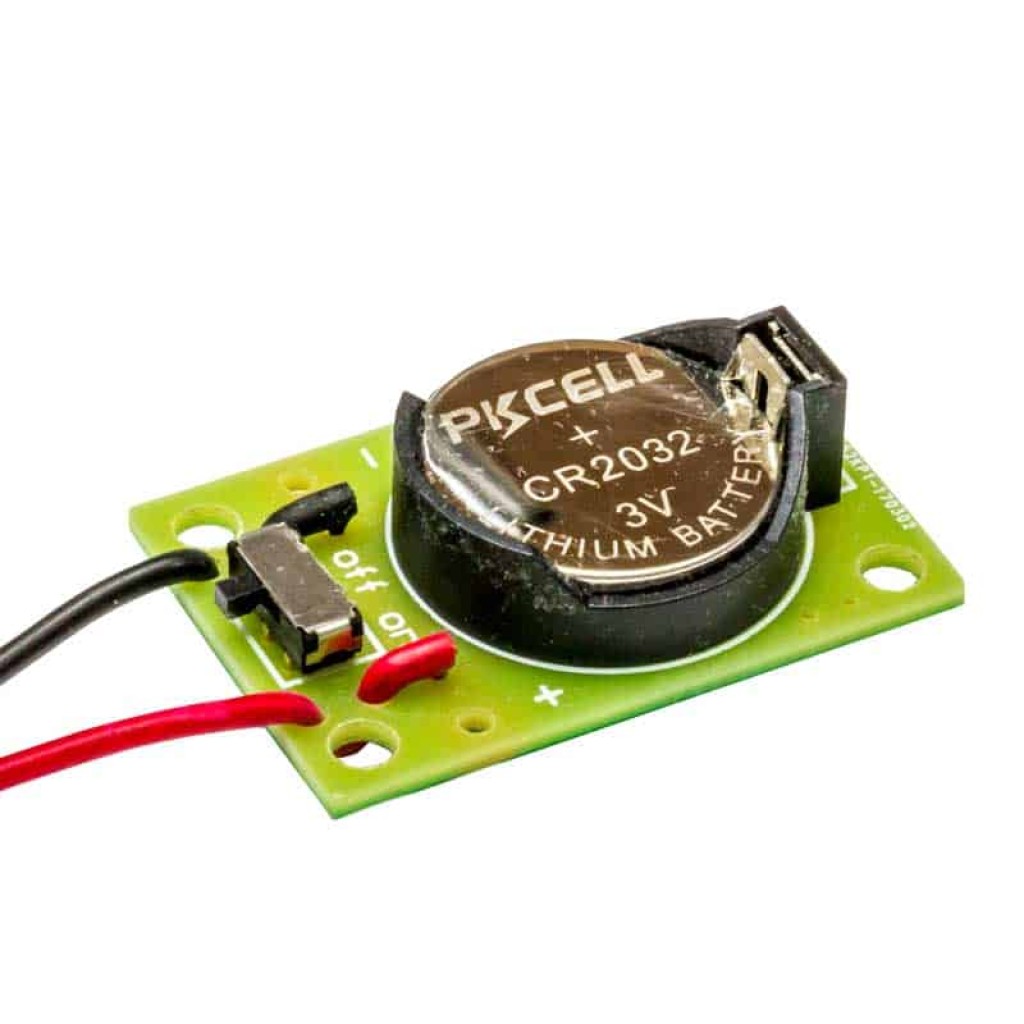

Battery Holder with Side Mounted Switch

Battery Holder with Top Mounted Switch

Please Note: CR2032 Battery is not included. See our CR2032 3V Lithium Battery if required.

Packaged Individually
