IEC 320 C14 Switched and Fused Panel-Mount Connector
PC Style Male Connector With Integrated Switch and Fuse
IEC 320 C14 panel-mount with LED illuminated toggle with integrated fuse. Commonly found on PCs, arcade machines, CNC control panels, 3D printer and other electronic devices. This connector mates with the C13-style power cord.
Connector assembly comes with 10A M205 (5mm x 20mm) fuse (additional fuses in various sizes available in Glass or Ceramic models). We also carry a stand-alone IEC 320 C14 panel mount jack without the integrated switch and fuse (see here).
The major difference between the two models is that the Small Switch model has a brighter LED indicator than the Large Switch model, which lights up when the switch is in the ON position.
Model Comparison and Connection Pinout
Small Switch Dimensions and Panel Cutout Details

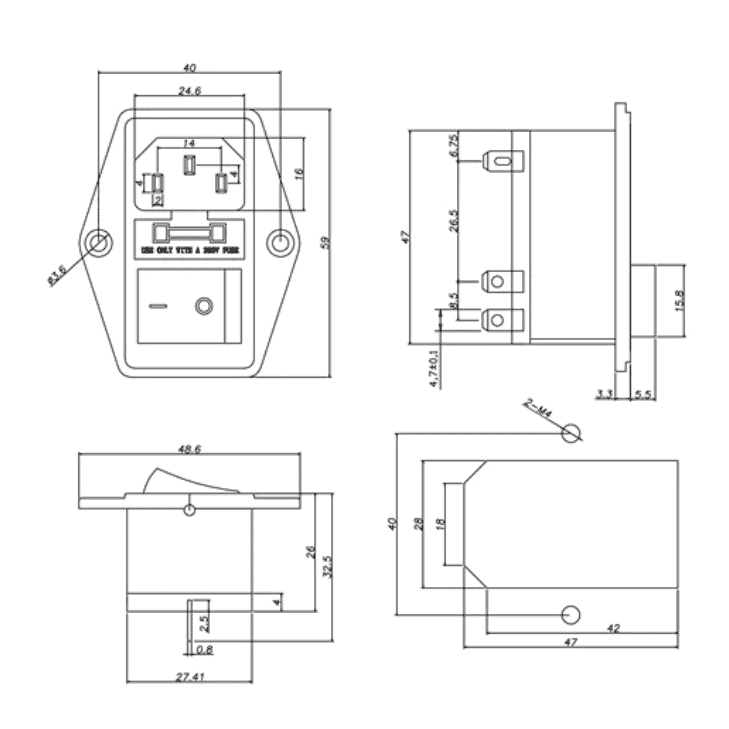

Large Switch Dimensions and Panel Cutout Details
IEC 320 C14 Switched Socket
- Product Code: IEC 320 C14 Chassis Mount Switch
- Availability: In Stock
-
$6.95 USD
Available Options
