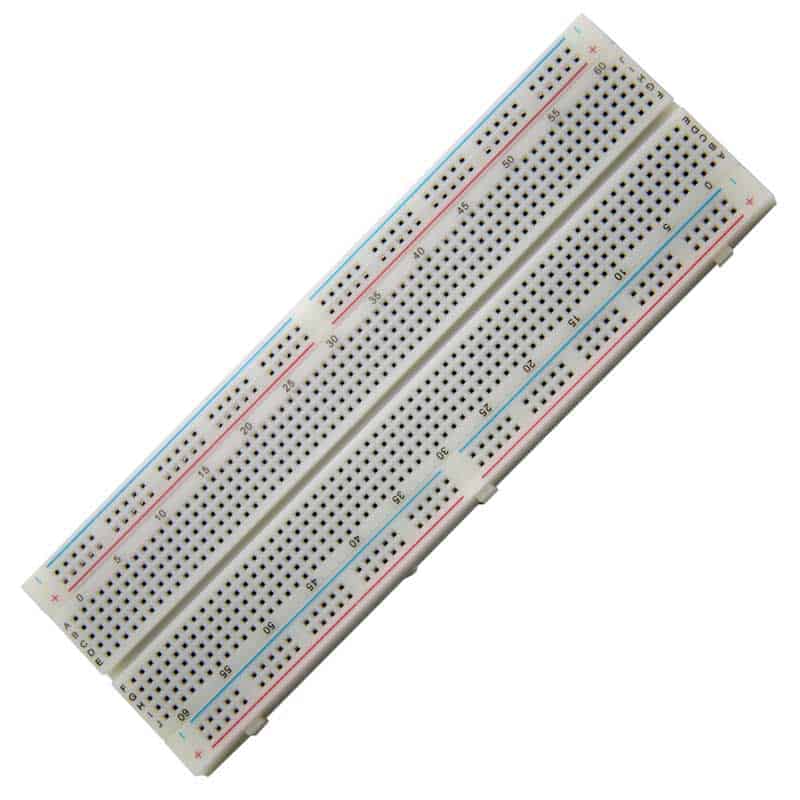

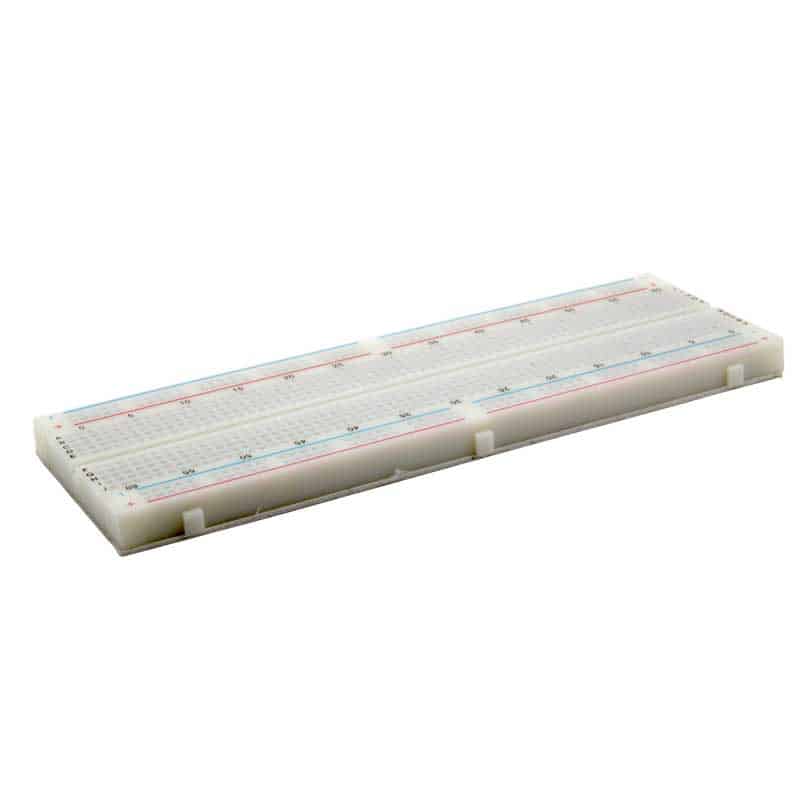

Solderless Breadboard

830 Easy-Insert Tie Points

Experimenters Solderless Breadboards allows for easily assembly and testing circuits without the use of solder, providing you with a quick and reliable method of prototyping.

Electrical connection is made by inserting your component lead through the 0.1" spaced holes into the spring clips mounted on metal strips within the ABS plastic board. These strips provide a common electrical connection, so additional components can easily be added.

Breadboard rows and columns are numbered and lettered to assist in component placement and polarities marked on each strip power rail.

Features:

• Accepts most electronic components, including integrated circuits and transistors for digital and/or analog circuitry
• Dimensions: 54mm (W) x 166mm (L) (2.2" x 6.6")
• 2 Distribution Strips Per Side
• 200 Distribution Holes
• 630 Terminal Holes
• ABS Plastic
• Completely reusable
• Colored coordinates for easy component placement
• Phosphor bronze nickel-plated spring clips
• Accepts a variety of wire sizes (20-29 AWG)

Each board features slide-in interlocking joints to allow for boards to be joined on either side and also includes a foam adhesive backing to hold down the board to your work surface firmly. We have also seen clients install Velcro strips on the bottom to allow for a removable solution.

Our optional Breadboard Power Supply or Mini Breadboard Power Supply installs easily into the breadboard, providing 5v and 3.3v power to your project.
