Mini 3.3V and 5V Breadboard Power Supply

Dual-Voltage Output

Easily provide power to your breadboard projects from a DC wall wart power supply (compatible with any of our breadboards). The board has dual independent outputs, allowing for 3.3v or 5v to be output on each side into the power connections of your breadboard project. Switch on each side of the board allows to select output voltages or apply the same voltage to each side rail.

Input voltage to the DC In power connector can be anywhere from 6.5v DC to a maximum of 12v DC and each output can provide up to 700mA (0.7A) of current. It is recommended to supply up to 10V maximum.

The board features a concave cutout allowing it to overhang the edge of your prototype board without covering valuable prototype space.

.1" headers are mounted on the bottom of the PCB for simple insertion into breadboards with dual power supply rails. The DC power jack is a 2.1mm barrel connector and easily matches any industry-standard DC wall adapter or to our economically priced 12v 2A DC Wall Adapter (sold separately).

The board also features a mini-USB port, which allows connection to a PC and will supply 5v directly to the board.

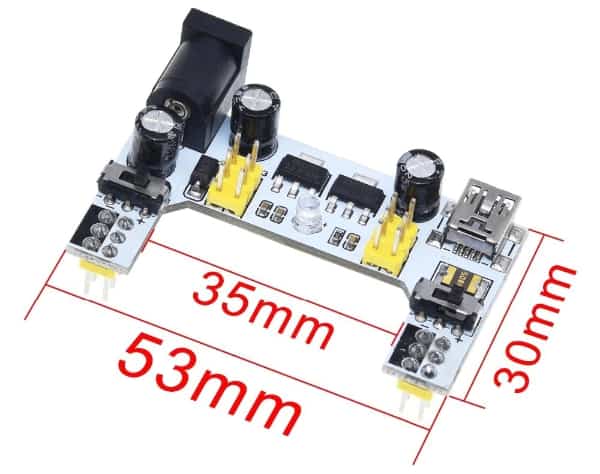

The module is conveniently sized at 53mm wide by 30mm deep (2.1" x 1.2")
