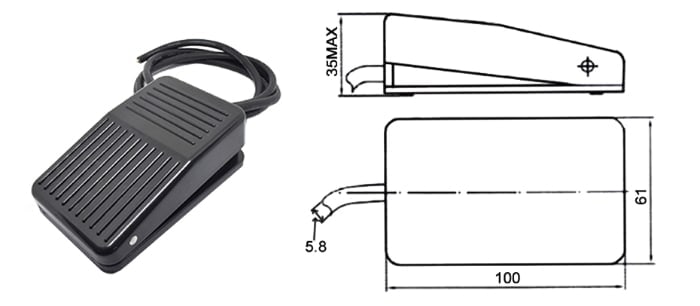

Foot Pedal Switch - Power Controller Treadle Switch

With 1M - 39.7-inch Cable

The foot pedal switch is perfect for any applications where you need to keep your hands' free while controlling an electrical device with your foot.

Suitable for use with laser and CNC applications or adding a foot control for PTT transceiver operations. It keeps your hands free for other functions and will significantly reduce fatigue and improves efficiency.

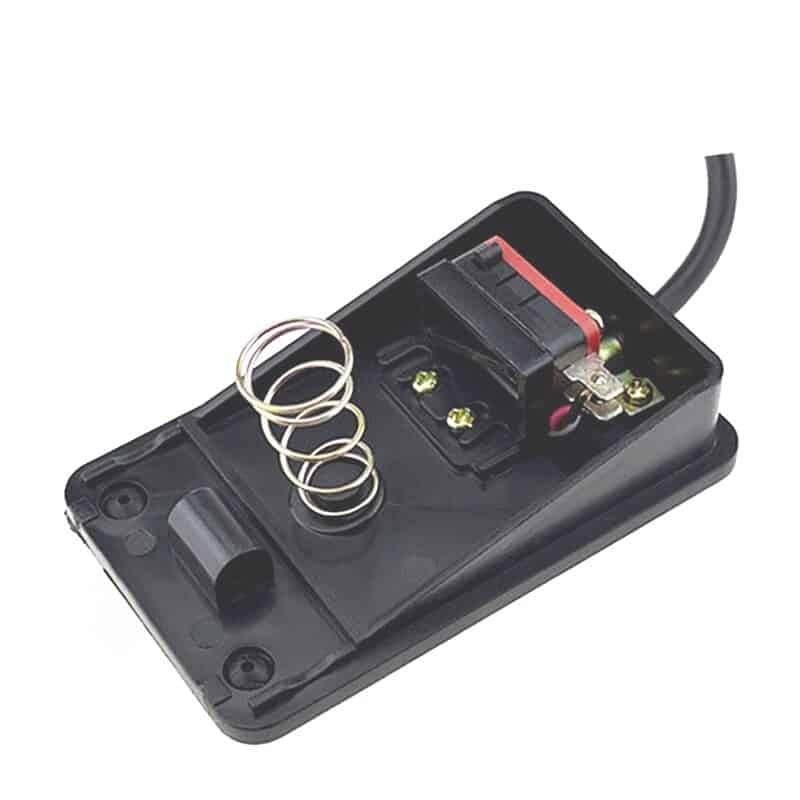

The pedal is a spring-loaded hinge design - pushing the pedal down triggers the contacts, and releasing the foot pedal will automatically return the pedal to its original position.

Each pedal has a 1m (39-inch) connector cable with three leads. The White lead is the switch common lead, with the Red lead being the Normally Open contacts of the switch with the Black being the Normally Closed contacts.
