5V USB RGB LED RF Mini Controller

For 5v RGB LED Ribbon

The USB RF RGB LED Controller kit is designed to connect to a standard USB port available on a computer, TV, home entertainment center, or USB stand-alone power adapters. The system features a 17-key RF remote which controls the mini receiver control unit. Because the system is RF based, it can control the mini receiver control unit even if hidden from sight.

The system has featured 22 dynamic color changing modes along with 20 static color displays. These include fading, gradient color modes, flashes, jumping and more. Each is composed of mixed colors of RGB with different ratios, which can bring gorgeous effects.

Control of the RF receiver with the remote features a 10M (32-foot) range.

Features:

Convenient LED controller kit, mini RGB controller + RF wireless remote

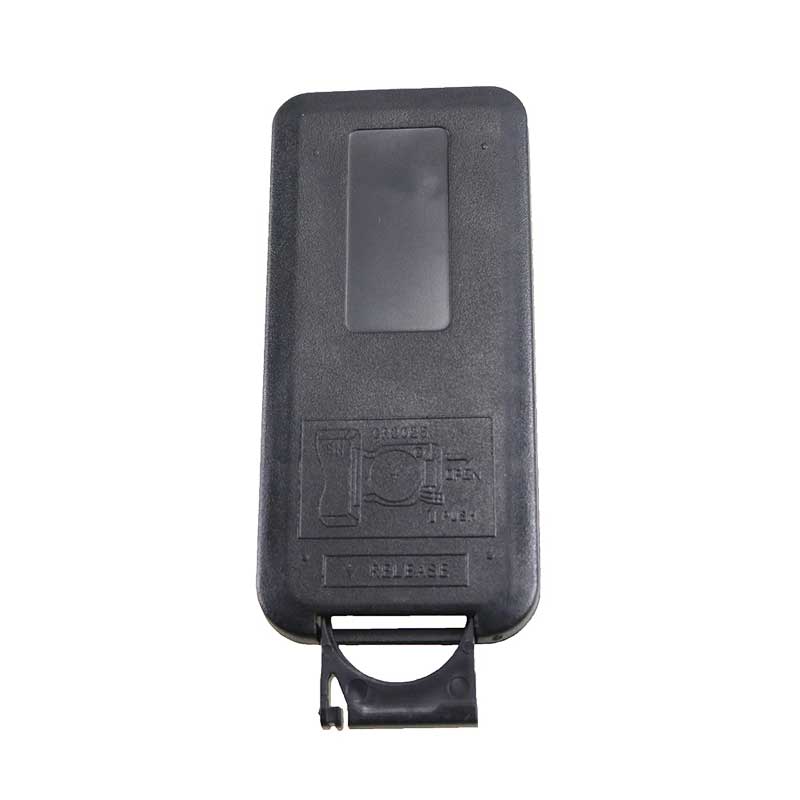

Ultra slim design RF remote
Input voltages DC 5-24V, three output channels
22 dynamic modes, 20 static colors, eight brightness grade and ten-speed options

Specifications:

Type: Mini Dimmer RF Wireless Remote Controller
Voltage: DC 5V -24V
Output Current: 12A
Dynamic Modes: 22 modes
Static Colors: 20 colors
PWM Levels: 256 levels
Brightness Levels: 5 levels
Speed Options: 10 levels
Remote distance: 10M in open area
Power (Remote): 3V CR2025 (not included)
Working Temperature: -20°C-60°C
Remote Controller Dimension: about L85mm x W40mm x H6mm

Functions:

Turn On/Standby: To turn on or switch to standby mode
Switch to static lighting mode from dynamic mode
MODE+ / MODE- : switch to dynamic mode from static lighting mode or switch between dynamic modes.
SPEED+ /SPEED- : adjust dynamic mode lighting speed.
BRIGHT+ / BRIGHT- : adjust lighting mode brightness.
Color+/Color-: shortcut key to static colors
Demo Mode: LED strip can play dynamic modes in a loop
