SIP Resistor Array

Available In Assorted Values

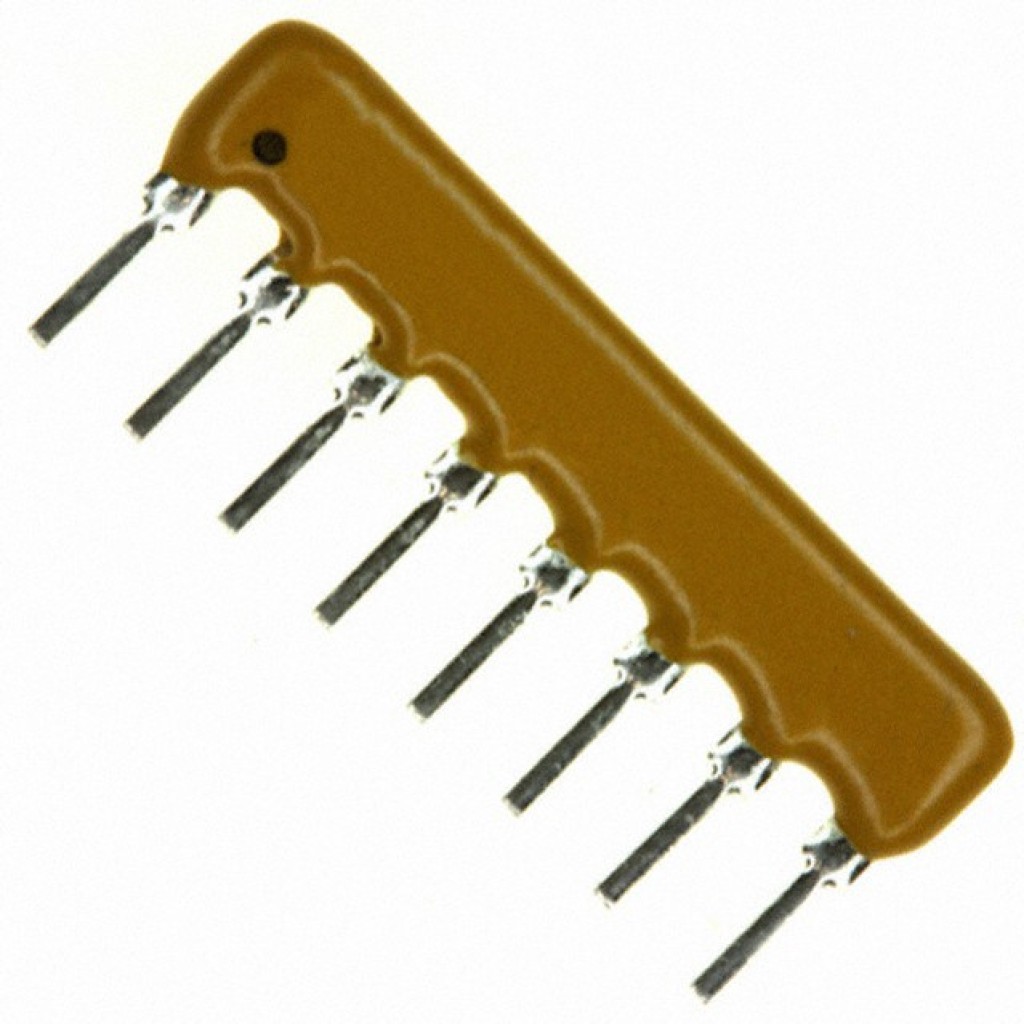

SIP Resistor Arrays (Single Inline Package) is an efficient way to pack several of the same value resistors into a convenient .1” spaced package. Available in different resistance values and number of pins. Pin 1 is identified with a dot above the pin – also known as Resistor Networks.

SIP resistor low profile makes them compatible to fit in DIP sockets if needed (0.1" spacing).
Maximum Operating Voltage: 100v
Power Rating (Total for Package): 0.50watts
Operating Temperature: -55C to +125C

The number of resistors in a package is determined by taking the number of pin, less one for the common lead. For example, a 10-pin device would have nine resistors and one common pin.
