HobbyCNC

PRO Chopper Driver Board

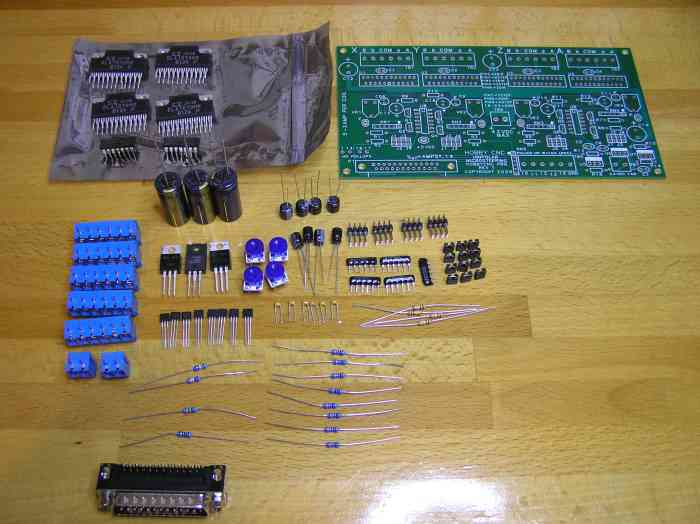

Your first job is to carefully remove all the parts from the package and sort them out. In our kit, we were missing a single .1uF capacitor. Good thing we have a well-stocked parts kit.
