PRO Chopper Driver Board

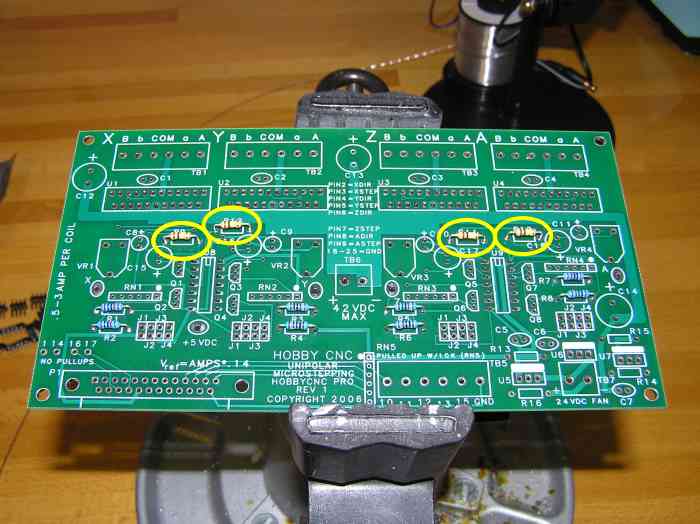

HobbyCNC PRO Chopper Driver Board Construction Step 2 Now we move on to the installation of four 100K ohm (Brown-Black-Yellow-Gold) resistors at locations R9, R10, R11 and R12. .
