PRO Chopper Driver Board

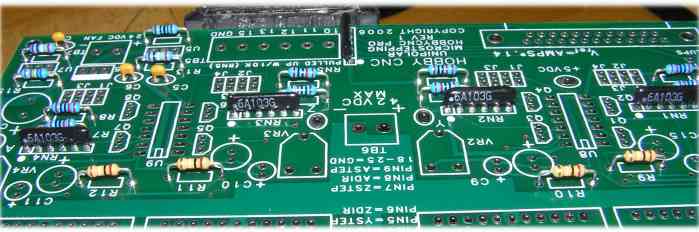

The next step involves the installation of five 10K ohm Resistor Networks at positions RN1, RN2, RN3, RN4 and RN5. Resistor Networks must be installed in the correction direction. You should match up the dot on the resistor network with the corresponding dot on the PC board.
