HobbyCNC
PRO Chopper Driver Board

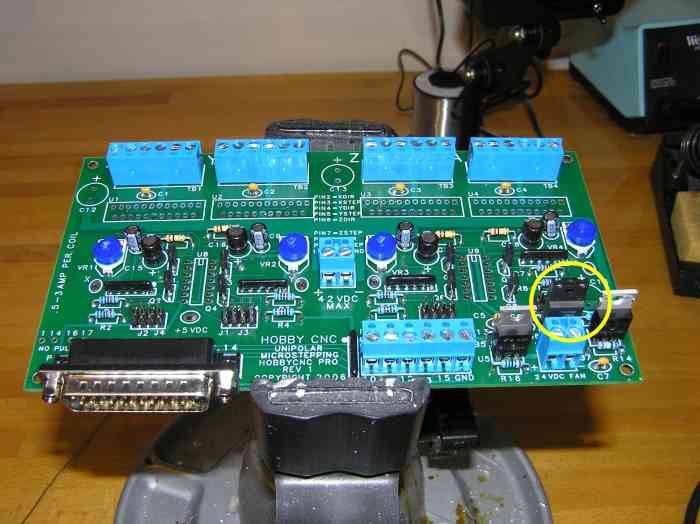

The final regulator, 7824, can now be installation at position U6. The tab on the back of the regulator should be towards C6. The silkscreen on the board shows the tab as a wide white band.
