PRO Chopper Driver Board

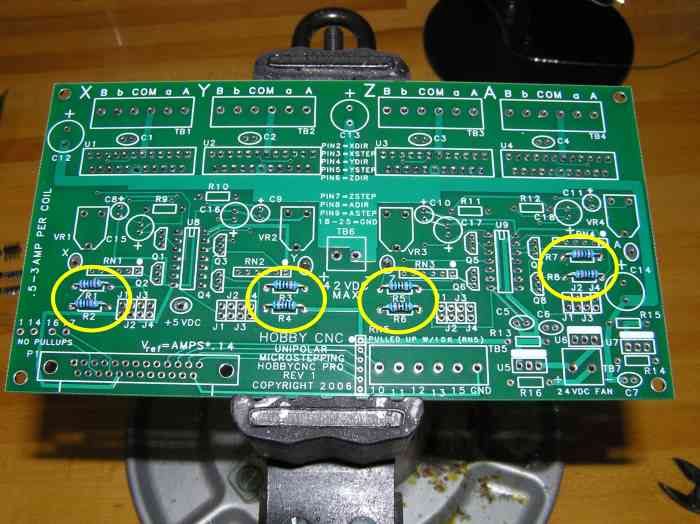

This is where we begin, and you should follow the guide included with the board. The first step is for the installation of eight 10K ohm (Brown-Black-Black-Red-Brown) resistors at location R1, R2, R3, R4, R5, R6, R7 and R8.

Throughout the assembly guide, we will highlight the components with a large circular yellow indicators. .
