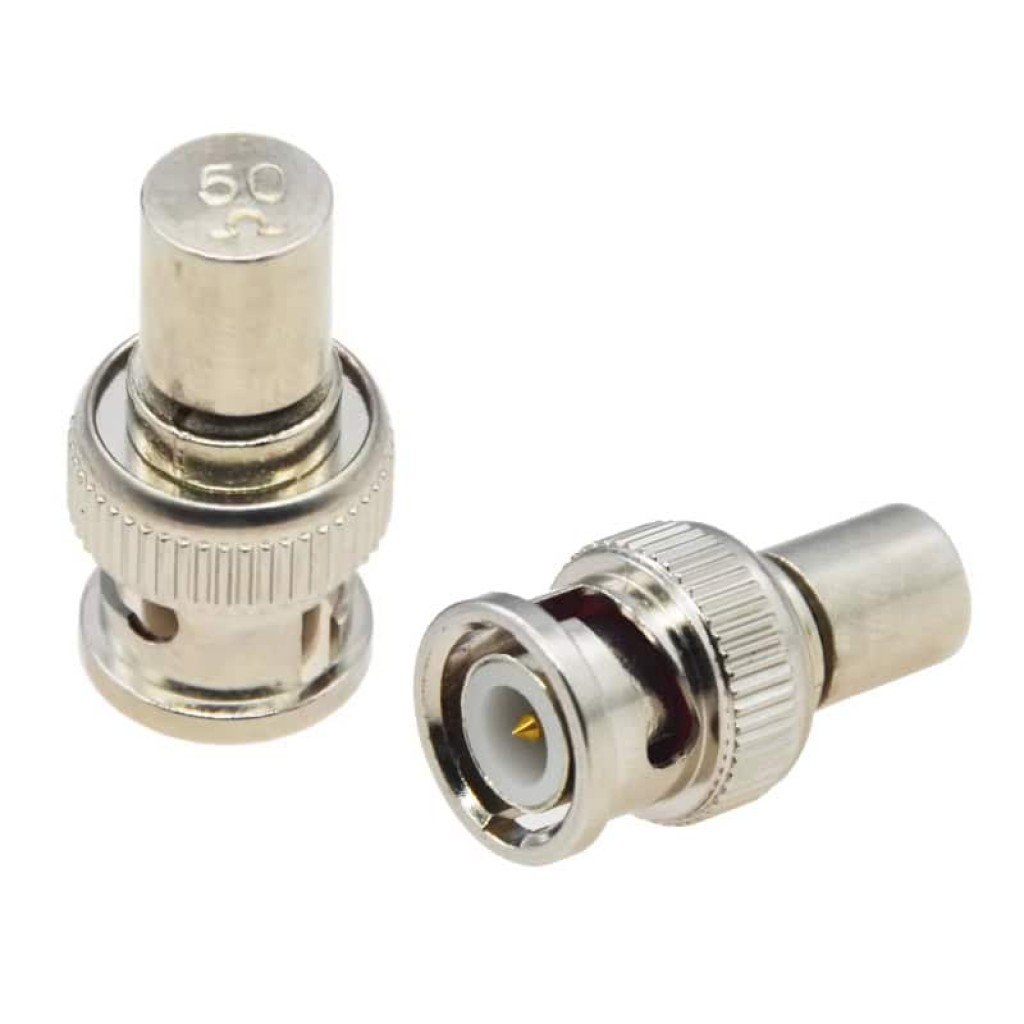

50 Ohm BNC Male Terminator

The 50 Ohm BNC Male Terminator provides a precision impedance-matched load for RF, test, and communications equipment utilizing standard BNC connectors. Designed to terminate unused ports and signal paths, this compact terminator helps minimize signal reflections and standing waves caused by improperly terminated transmission lines.

Featuring a standard BNC male connector and an internal 50Ω resistive load, the terminator is ideal for laboratory testing, RF experimentation, amateur radio projects, NanoVNA measurements, SDR systems, signal generators, oscilloscopes, and communications equipment.

Proper termination is essential when working with 50Ω systems to ensure accurate measurements and reliable performance. This terminator provides an easy and convenient solution for maintaining correct impedance matching throughout RF installations and test setups.

Features

• Precision 50Ω impedance termination
• Standard BNC male connector
• Reduces signal reflections and standing waves
• Ideal for NanoVNA analyzers and RF test equipment
• Suitable for oscilloscopes, SDR receivers, and signal generators
• Compact all-metal construction
• Nickel-plated body for durability and corrosion resistance
• Easy installation with standard BNC bayonet coupling
• Suitable for laboratory, industrial, and amateur radio applications

Applications

• NanoVNA vector network analyzers
• Oscilloscopes and laboratory instruments
• Signal generators and frequency counters
• Software Defined Radio (SDR) systems
• RF development and testing
• Amateur radio equipment
• Communications systems
• Antenna test setups
• Unused BNC port termination

Specifications

Package Contents

• 1 x 50 Ohm BNC Male Terminator
