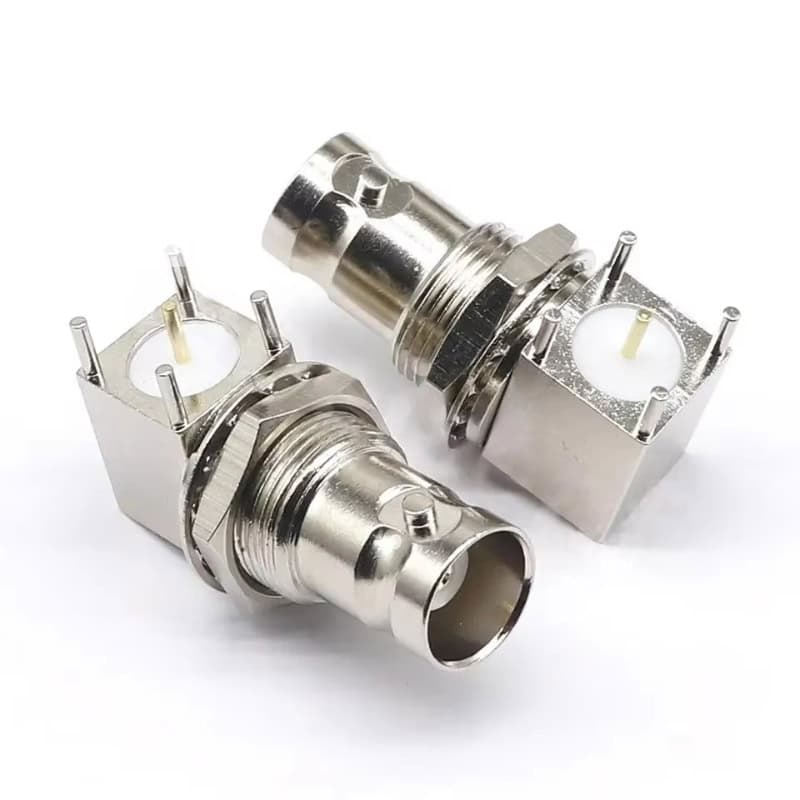

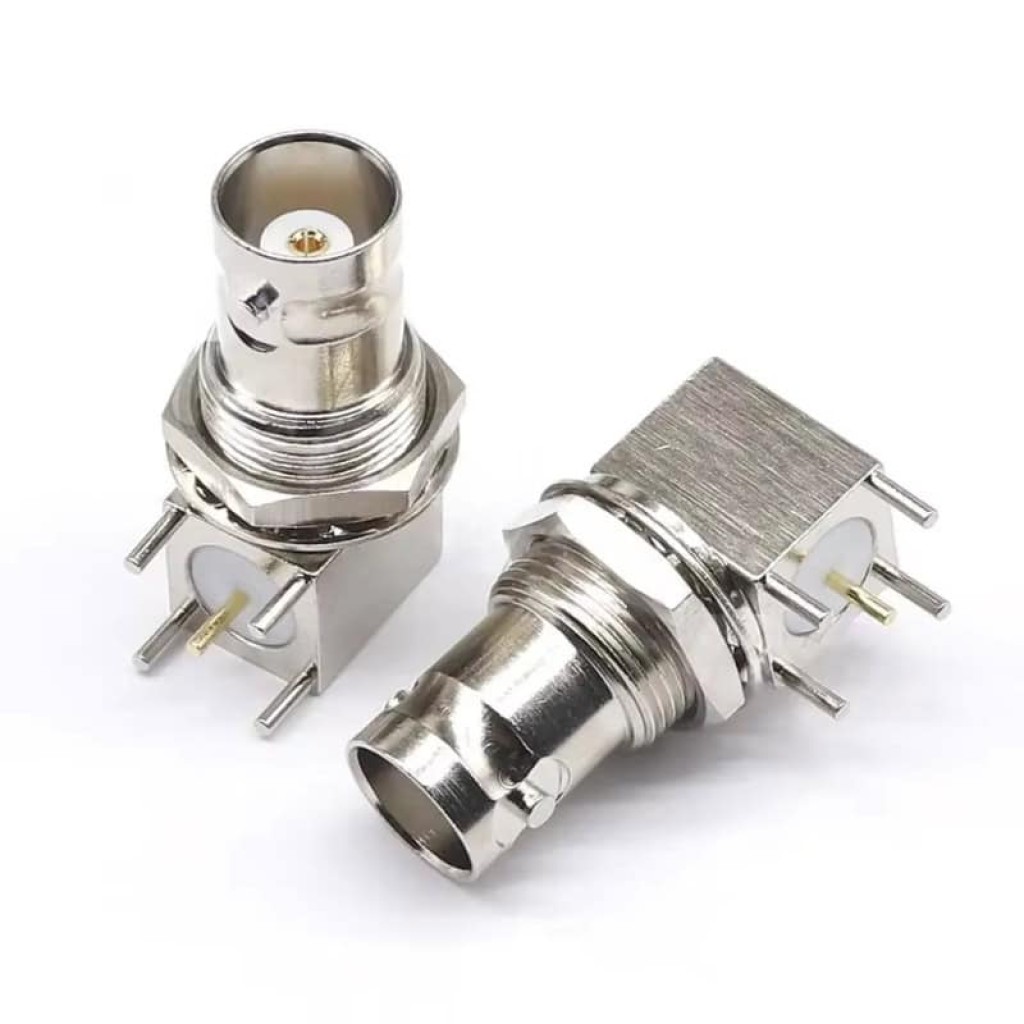

BNC Female Panel Mount PCB Connector

The BNC Female PCB Mount Bulkhead Connector is a high-quality panel-mount RF connector designed for printed circuit board installation. Featuring a standard BNC female interface and through-hole PCB pins, this connector is ideal for RF equipment, NanoVNA fixtures, SDR projects, amateur radio applications, test instruments, signal distribution systems, and custom electronics enclosures.

The bulkhead design allows the connector to be securely mounted through a panel or enclosure while the solder pins provide a robust connection to a printed circuit board. A supplied mounting nut and lock washer ensure reliable installation and excellent mechanical stability.

Constructed from nickel-plated metal for durability and corrosion resistance, this connector is suitable for both commercial and hobbyist electronics projects where a professional panel-mounted BNC connection is required.

Features

• Standard BNC female connector interface
• Panel-mount bulkhead design
• PCB through-hole solder pins
• Includes mounting nut and lock washer
• Suitable for RF and communications equipment
• Ideal for SDR and amateur radio projects
• Nickel-plated metal construction
• Provides a secure mechanical mounting solution
• Compatible with standard BNC male plugs
• Suitable for custom enclosures and test equipment

Applications

• RF test equipment
• Software Defined Radio (SDR) systems
• Amateur radio projects
• NanoVNA accessories and fixtures
• Oscilloscopes and laboratory instruments
• Signal generators and frequency counters
• Custom electronic enclosures
• Antenna interfaces
• Industrial instrumentation
• Communications equipment

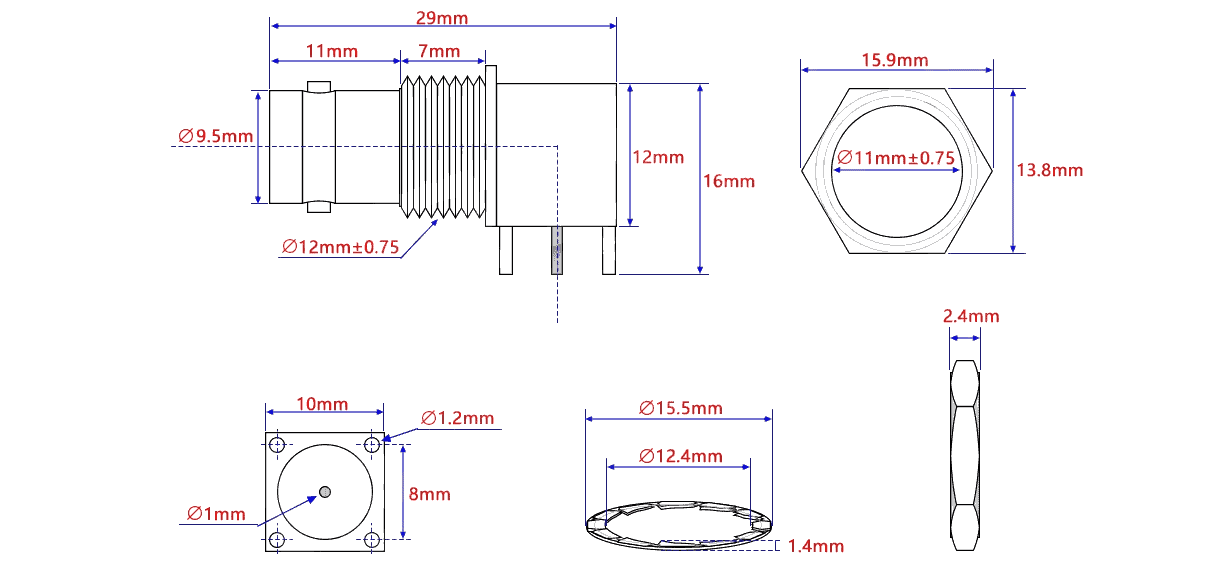

Specifications

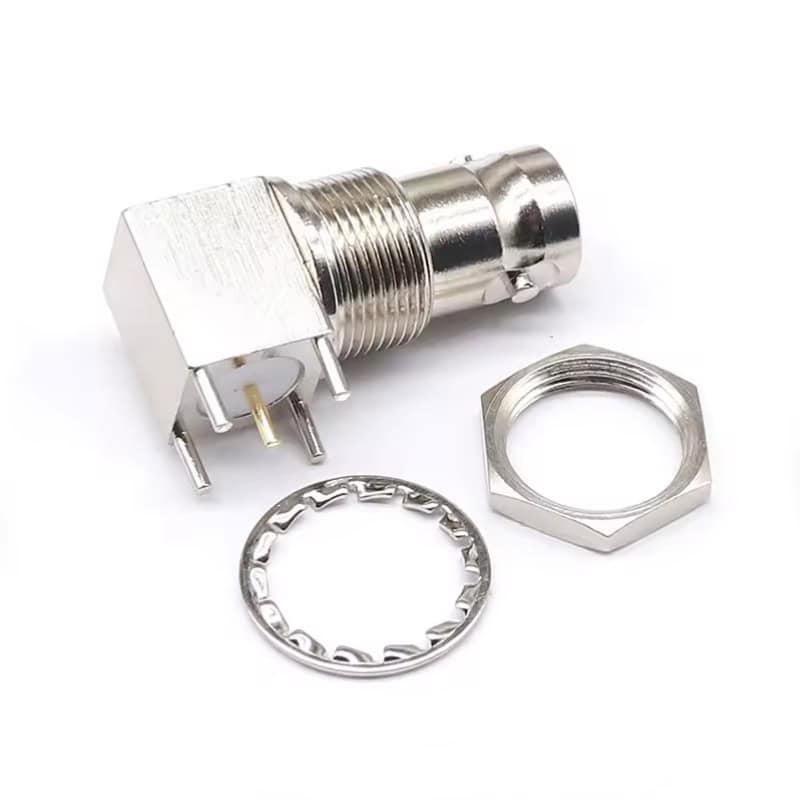

Package Contents

• 1 x BNC Female PCB Mount Bulkhead Connector
• 1 x Mounting Nut
• 1 x Lock Washer
