SMA SOL Calibration Standards for NanoVNA and VNA Calibration

The SMA SOL Calibration Kit includes Open, Short, and 50 Ohm Load standards for calibrating NanoVNA units, vector network analyzers (VNAs), antenna analyzers, and other RF test equipment. Proper SOL calibration improves measurement accuracy for VSWR, return loss, impedance, and RF component testing.

Gold-plated SMA connectors provide excellent conductivity, corrosion resistance, and long service life. Suitable for RF measurements up to 6 GHz.

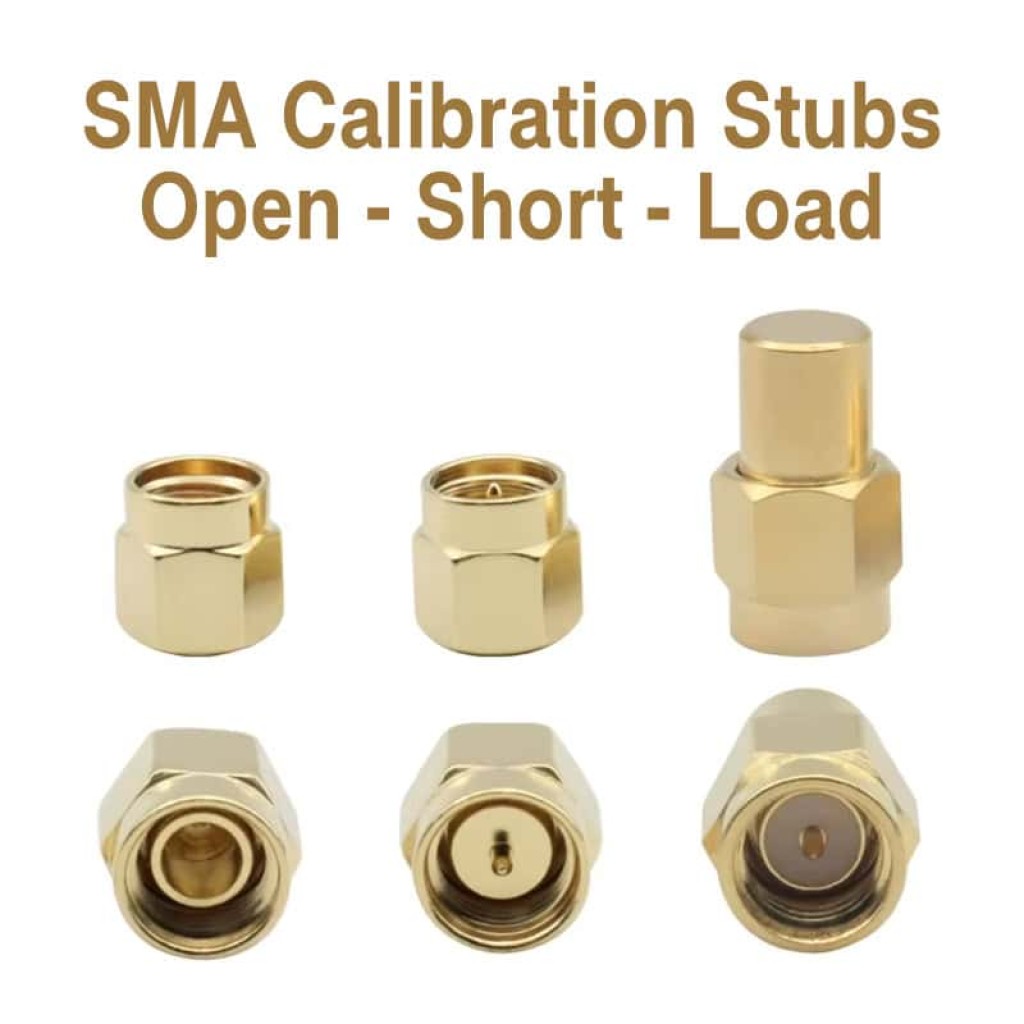

Included Calibration Standards

• Open Standard
• Short Standard
• 50 Ohm Load Standard

Designed for use with SMA female interfaces, this calibration set allows accurate one-port calibration of RF test equipment before making measurements. Performing a proper SOL (Short-Open-Load) calibration helps compensate for systematic measurement errors, improving the accuracy of return loss, impedance, VSWR, and reflection coefficient measurements.

This compact calibration kit is ideal for NanoVNA users, antenna analyzers, spectrum analyzers with tracking generators, SDR development work, RF troubleshooting, wireless system testing, and general laboratory applications.

The precision-machined brass bodies feature gold-plated SMA connectors for excellent conductivity, corrosion resistance, and long service life. The included 50 Ohm load provides a matched termination for calibration and RF testing applications.

Typical Applications:

• NanoVNA calibration
• Vector Network Analyzer (VNA) calibration
• Antenna tuning and matching
• RF laboratory measurements
• Wireless communication testing
• SDR experimentation
• Ham radio antenna analysis
• Coaxial cable testing
• Microwave system development

• Complete 3-piece SMA calibration standard kit
• Includes Open, Short and 50 Ohm Load references
• Designed for accurate SOL calibration procedures
• Suitable for RF measurements up to approximately 6 GHz
• Compatible with NanoVNA and other SMA-equipped VNAs
• Gold-plated connectors for low loss and corrosion resistance
• Improves measurement accuracy and repeatability
• Ideal for antenna, cable and RF component testing
• Compact and easy to carry
• Suitable for amateur radio, SDR and laboratory environments

Note: Frequency performance depends on calibration quality and instrument limitations. Suitable for RF measurements up to approximately 6 GHz.
