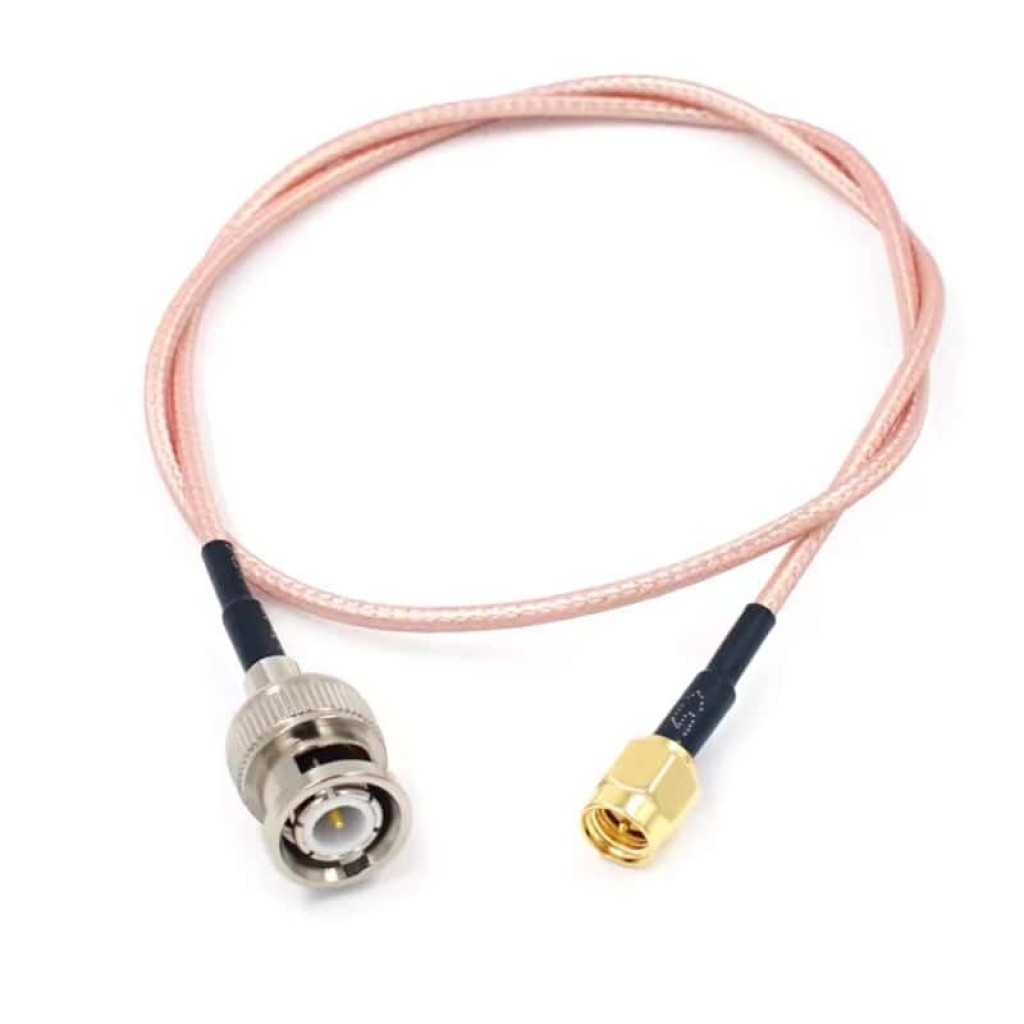

SMA Male to BNC Male RG316 30cm Cable Assembly

The SMA Male to BNC Male RG316 Coaxial Cable Assembly provides a reliable 50 Ohm connection between NanoVNA analyzers, RF test equipment, radios, antennas and instruments using SMA and BNC interfaces. Constructed using flexible 50 Ohm RG316 coaxial cable, this assembly is suitable for RF testing, communications equipment, antenna systems, and laboratory applications.

The SMA Male connector is fully compatible with NanoVNA vector network analyzers, making this cable ideal for connecting NanoVNA test equipment to BNC-equipped devices, filters, antennas, RF circuits, and measurement equipment.

With a convenient 30cm (11.8-inch) length, this cable minimizes excess clutter while providing sufficient flexibility for bench-top testing and field use.

Features

• SMA Male to BNC Male connector configuration
• Compatible with NanoVNA vector network analyzers
• Flexible 50 Ohm RG316 coaxial cable
• 30cm cable length
• Ideal for RF test and measurement applications
• Gold-plated SMA connector for excellent conductivity
• Durable construction suitable for repeated use
• Low-loss signal transmission for RF systems

Applications

• NanoVNA vector network analyzers
• Amateur radio stations
• Antenna testing and tuning
• RF filters and duplexers
• Spectrum analyzers and signal generators
• Laboratory and educational projects
• General 50 Ohm RF interconnections

Specifications

Note: NanoVNA devices typically use SMA connectors. This cable allows direct connection from NanoVNA equipment to devices and instruments equipped with BNC interfaces.
