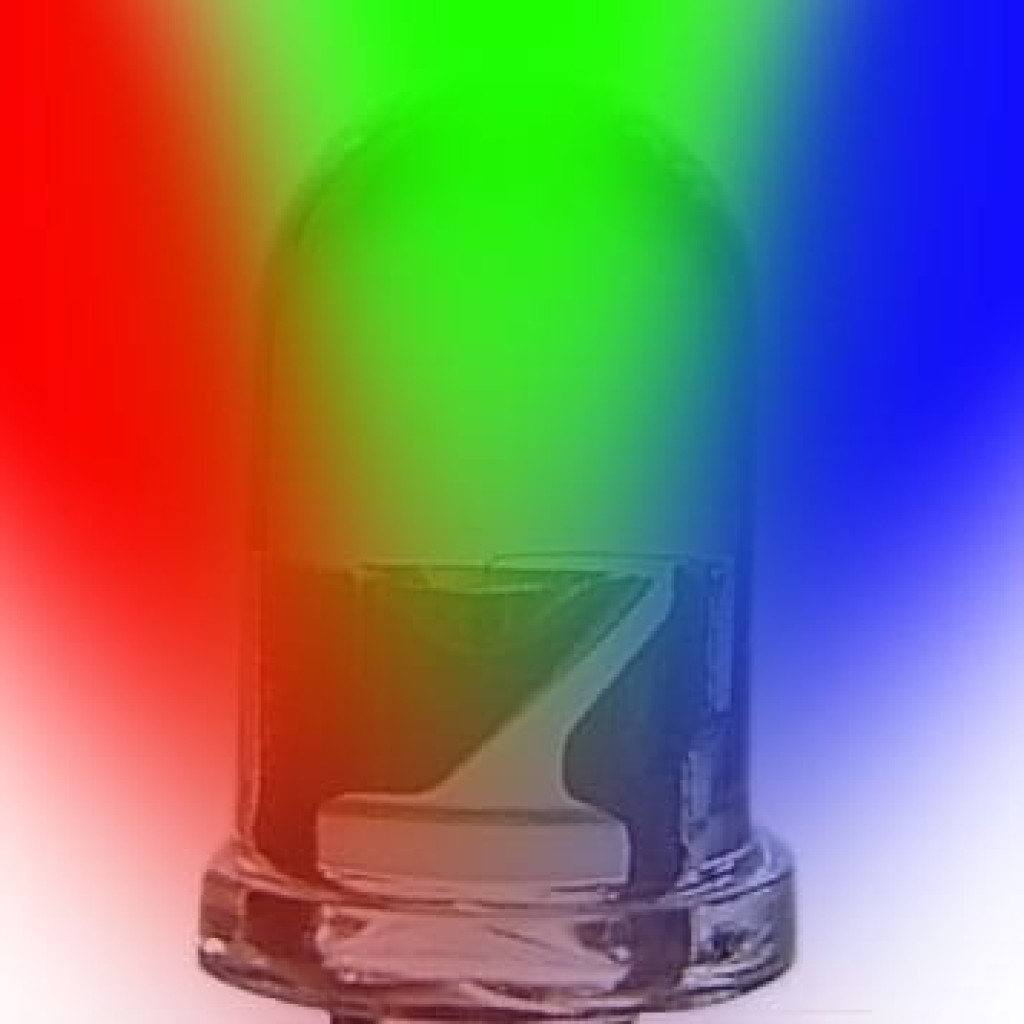

5mm Automatic Color Changing LED

Requires No Additional Components

5mm Through-Hole LEDs: Built by industry leading manufactures, the 5mm T1 3/4 LED is the most common size, used in many custom projects, car lighting, models, and anywhere where you need low power, high intensity reliable lighting or indication.

RGBC301-09 - Multi-Color

Color Frequency: Red-Green-Blue
Luminous Intensity: 2,800mcd
Viewing Angle: 30°
Forward Voltage: 3.2v - 3.4v
Typical Voltage: 3.3v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Clear

RGBC301-02 - Multi-Color

Color Frequency: Red-Green-Blue
Luminous Intensity: 2,500mcd
Viewing Angle: 30°
Forward Voltage: 3.2v - 3.7v
Typical Voltage: 3.5v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Clear

RGBF1801-07 - Auto Color Change - Fast

Color Frequency: Red-Green-Blue (Seven Color Combinations)
Effect: Fast change between seven color combinations
Luminous Intensity: 2,000mcd
Viewing Angle: 160° to 180°
Forward Voltage: 3.0v - 3.8v
Typical Voltage: 3.3v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Milky White - Frosted

RGBF1801-08 - Auto Color Change - Slow

Color Frequency: Red-Green-Blue (Seven Color Combinations)
Effect: Slow change between seven color combinations
Luminous Intensity: 2,400mcd
Viewing Angle: 160° to 180°
Forward Voltage: 3.0v - 3.9v
Typical Voltage: 3.1v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Milky White - Frosted

RGBF1801-06 - Auto Color Change - Slow

Color Frequency: Red-Green-Blue (Seven Color Combinations)
Effect: Slow change between seven color combinations
Luminous Intensity: 2,000mcd
Viewing Angle: 160° to 180°
Forward Voltage: 3.0v - 3.8v
Typical Voltage: 3.3v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Milky White - Frosted

RGBC241-01 - Multi-Color

Color Frequency: Red-Green-Blue
Luminous Intensity: 2,500mcd
Viewing Angle: 24°
Forward Voltage: 3.2v - 3.7v
Typical Voltage: 3.5v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Clear

RGBF451-02 - Multi-Color

Color Frequency: Red-Green-Blue
Luminous Intensity: 2,500mcd
Viewing Angle: 24°
Forward Voltage: 3.2v - 3.7v
Typical Voltage: 3.5v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4
Lens: Frosted

For more information and technical details on our complete LED product line, please visit our Support Site.

Package of 10 Pieces
Bulk packaged for larger quantities
