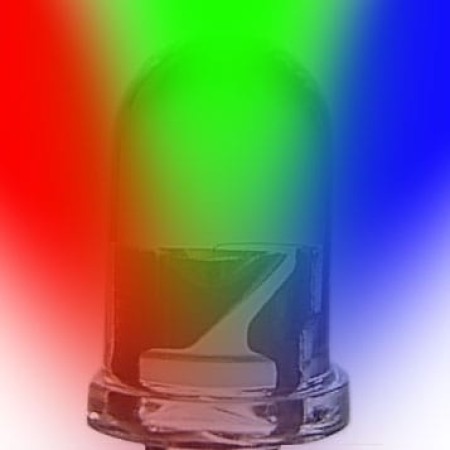

5mm Through-Hole LEDs: Built by industry leading manufactures, the 5mm T1 3/4 LED is the most common size, used in many custom projects, car lighting, models, and anywhere where you need low power, high intensity reliable lighting or indication.

RGBC521-04 - RGB Common Anode
Color Frequency: 625nm Red, 520nm Green, 465 Blue
Luminous Intensity: 4,200mcd Red, 8,500 Green, 6,800 Blue
Configuration: Common Anode
Lens Style: Clear
Viewing Angle: 52°
Forward Voltage: Red: 1.9v-2.2v, Green: 3.0v-3.4v, Blue 3.0v-3.4v
Typical Voltage: Red: 2.0v, Green: 3.1v, Blue: 3.0v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4

RGBF601-05 - RGB Common Anode
Color Frequency: 625nm Red, 520nm Green, 465 Blue
Luminous Intensity: 3,600mcd Red, 6,700 Green, 5,800 Blue
Configuration: Common Anode
Lens Style: Frosted
Viewing Angle: 60°
Forward Voltage: Red: 1.8v-2.2v, Green: 3.0v-3.3v, Blue 3.0v-3.4v
Typical Voltage: Red: 1.9v, Green: 3.2v, Blue: 3.1v
Typical Forward Current: 20mA
Style: Round 5mm - T1 3/4

For more information and technical details on our complete LED product line, please visit our Support Site.

Package of 10 Pieces
Bulk packaged for larger quantities

Reference: RGBC521-04
