10 Degree LED Focus Lens
Premium 10 Degree LED Focus Lens Assembly
This lens fits on standard high power LEDs (1w, 3w and 5w) to control where the light from the LED is going and how bright it is, creating a more focused, narrow beam. This lens fits high power LED Beads extremely well and compatible with our LED Bead Boards.
Note: For applications where wiring to the top of the LED leads is necessary, we recommend our low-profile miniature LED lens.

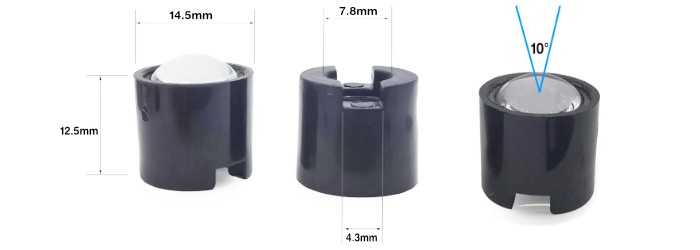

Lens Angle: 10°
Holder Diameter: 14.5mm
Holder Height: 12.5mm
Material: Optical grade Acrylic plastic
Lens Holder Color: White

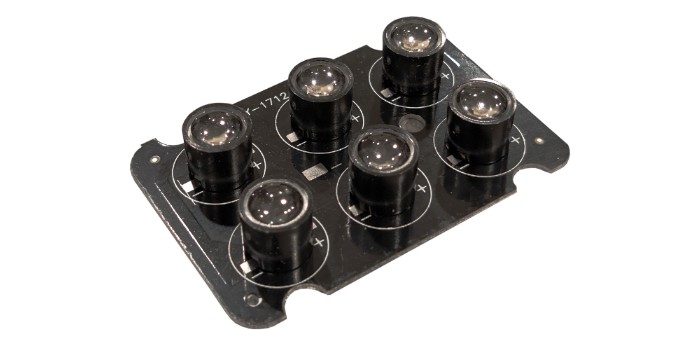

Lens Mounting Example
For applications such as multi-LED Bead Board assemblies, the lens fits over standard LED Beads and is held in place by friction-fit.
Individually Packaged
| Light Packet | |
| Package Type | Light Packet |
10 Degree LED Focus Lens
- Product Code: miniature-LED-focus-Lens-010
- Availability: In Stock
- Light Packet Shipping Eligible
-
$0.80 USD
-
- 2 or more $0.75 USD
- 5 or more $0.70 USD
- 10 or more $0.60 USD
