• STP36NF06

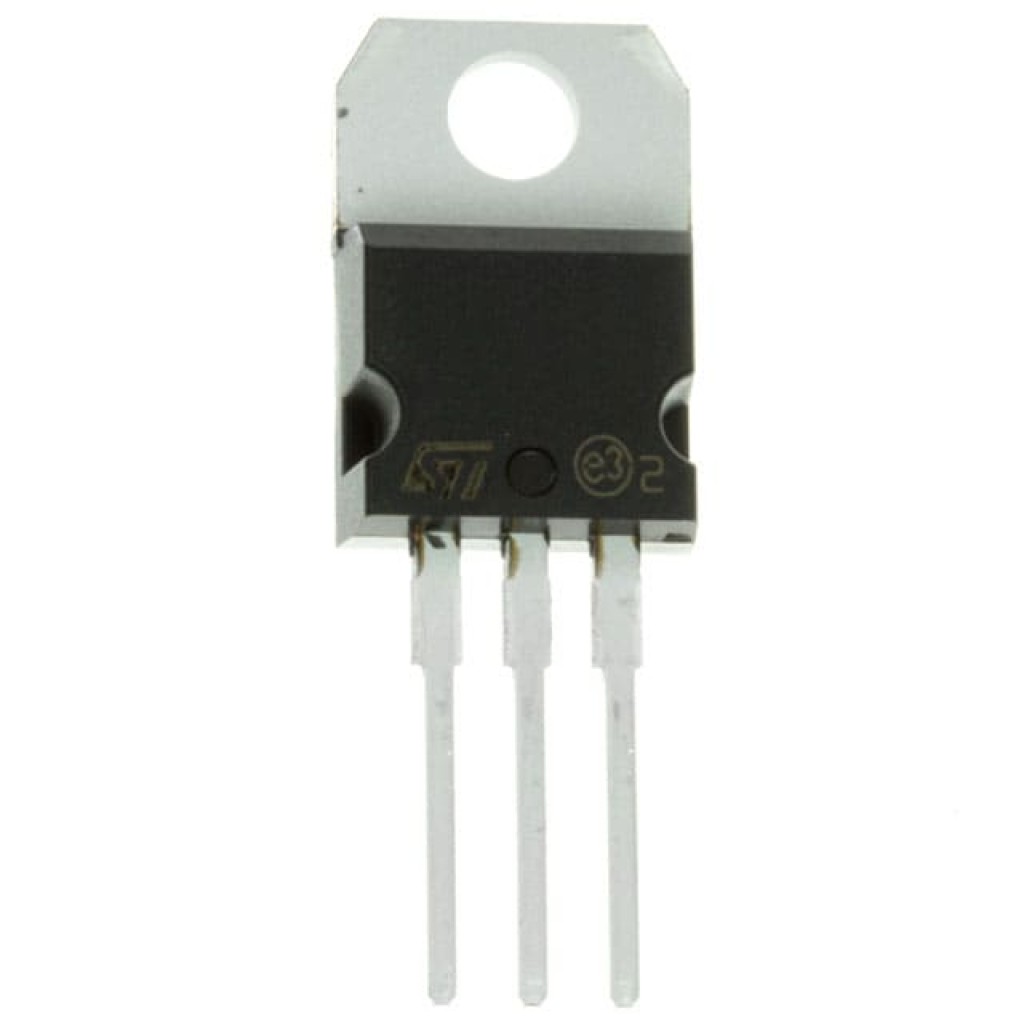

STP36NF06 MOSFET N-Channel

Family: MOSFETs, GaNFETs - Single
Series: STripFET
FET Type: MOSFET N-Channel, Metal Oxide
FET Feature: Standard
Rds On (Max) @ Id, Vgs: 40 mOhm @ 15A, 10V
Drain to Source Voltage (Vdss): 60V
Vgs(th) (Max) @ Id: 4V @ 250µA
Gate Charge (Qg) @ Vgs: 31nC @ 10V
Current - Continuous Drain (Id) @ 25° C: 30A
Input Capacitance (Ciss) @ Vds: 690pF @ 25V
Power - Max: 70W
Mounting Type: Through Hole
Package / Case: TO-220-3 (Straight Leads)

Note: This is the MOSFET used on our LED Rainbow.

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

STP36NF06

MOSFET N-Channel
  • Product Code: STP36NF06
  • Availability: In Stock
  • $1.50 USD
