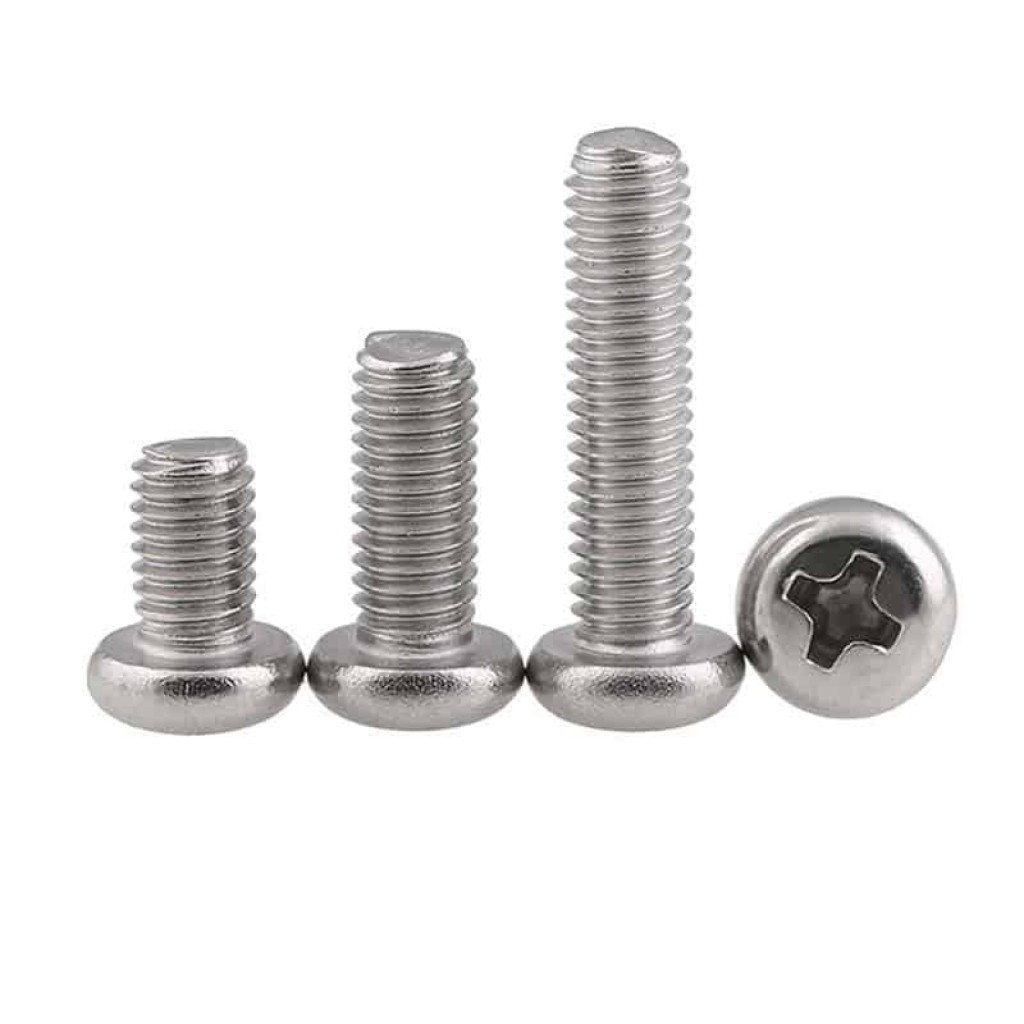

Pan Head Stainless Metric Screw

M1, M1.2, M2, M2.5, M3 or M4 - Package of 5 Pieces

An externally threaded Metric fastener with a head that has slightly rounded sides, a flat top, and a flat underside with a Phillips screw head.

Designed to hold pieces of machinery or electronics together. Pan Head screws require that the hole already is drilled and threaded. Available in M1, M2, M2.5, M3, and M4 diameters in 4, 5, 6, 8, 10, and 12mm lengths. Pan head machine screws are flat on top and rounded on the sides.

Metric Pan Head Screw Dimensions

(1mm)

Metric Pan Head Screw Size Options
Screw Size	Diameter	Length	Pitch	Material
M1	M1 (1mm)	4, 5, 6, and 8 mm	0.2 mm	304 Stainless
M1.2	M1.2 (1.2mm)	4, 5, 6, 8, 10, 12, 14 and 16 mm	0.25 mm	304 Stainless
M2	M2 (2mm)	4, 5, 6, 8, 10, and 12 mm	0.4 mm	304 Stainless
M2.5	M2.5 (2.5mm)	4, 5, 6, 8, 10, and 12 mm	0.45 mm	304 Stainless
M3	M3 (3mm)	4, 5, 6, 8, 10, 12, 25, and 30 mm	0.5 mm	304 Stainless
M4	M4 (4mm)	4, 5, 6, 8, 10, and 12 mm	0.7 mm	304 Stainless
