Arduino Nano v3 Compatible
ATmega328P Micro USB Interface with CH340G UART

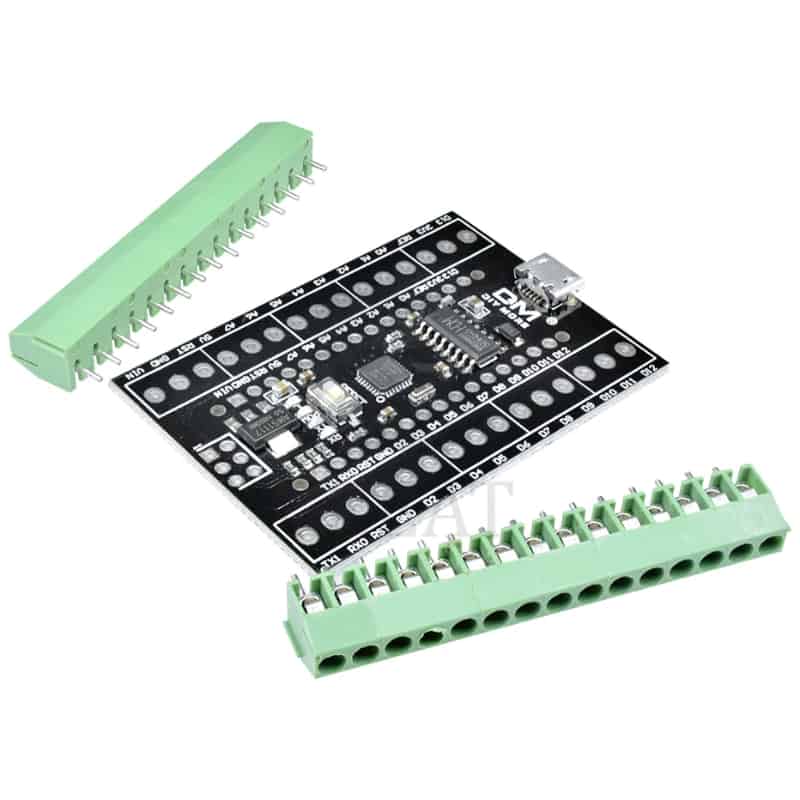

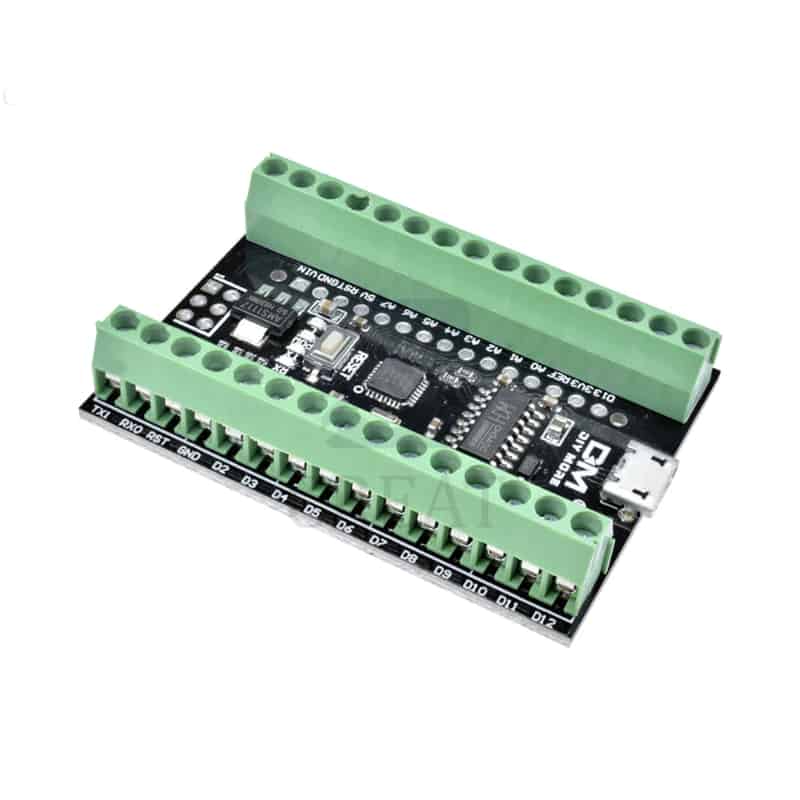

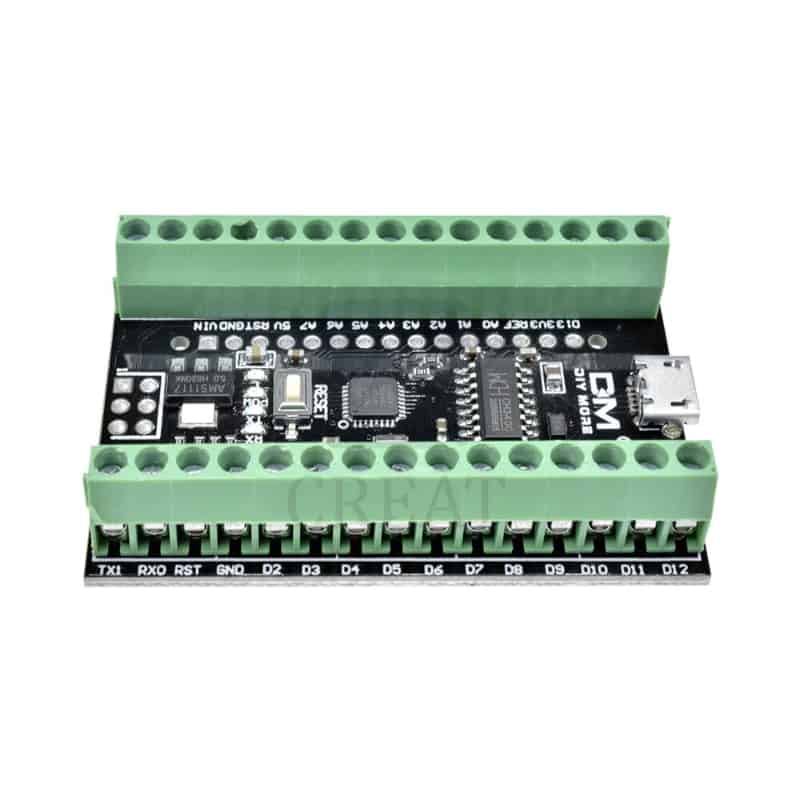

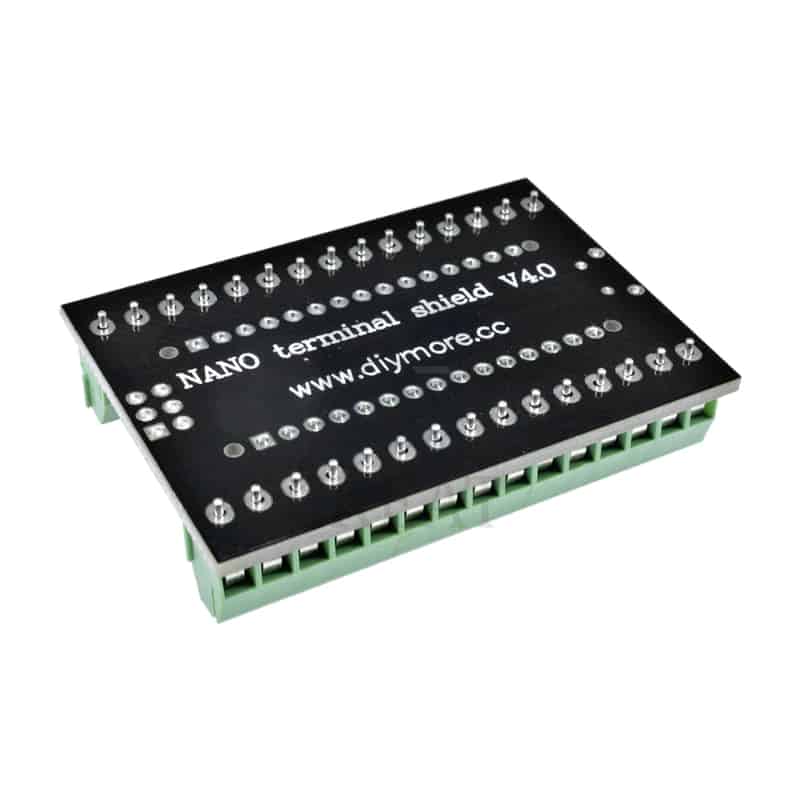

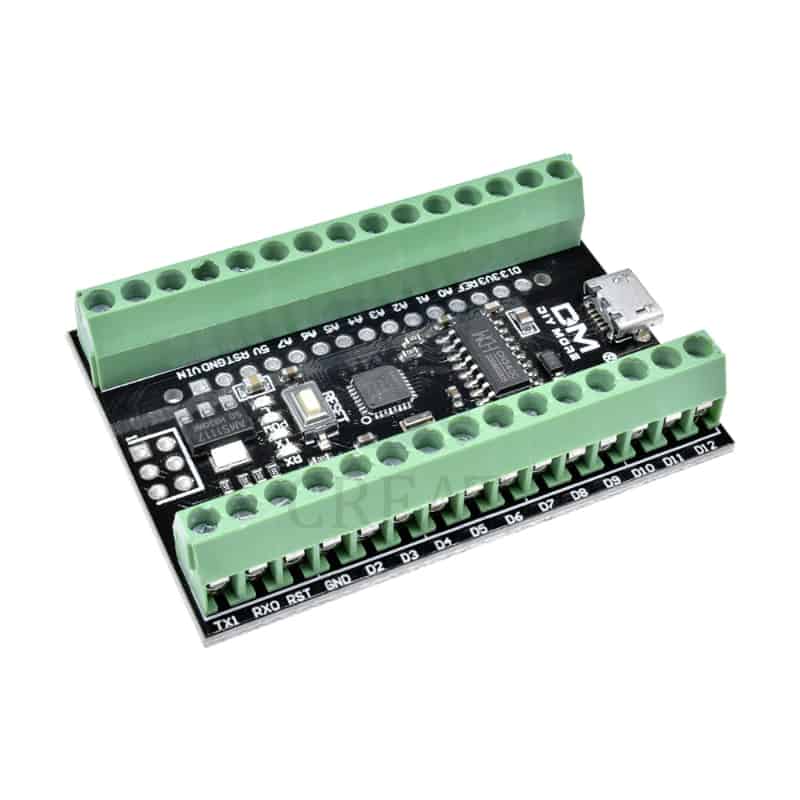

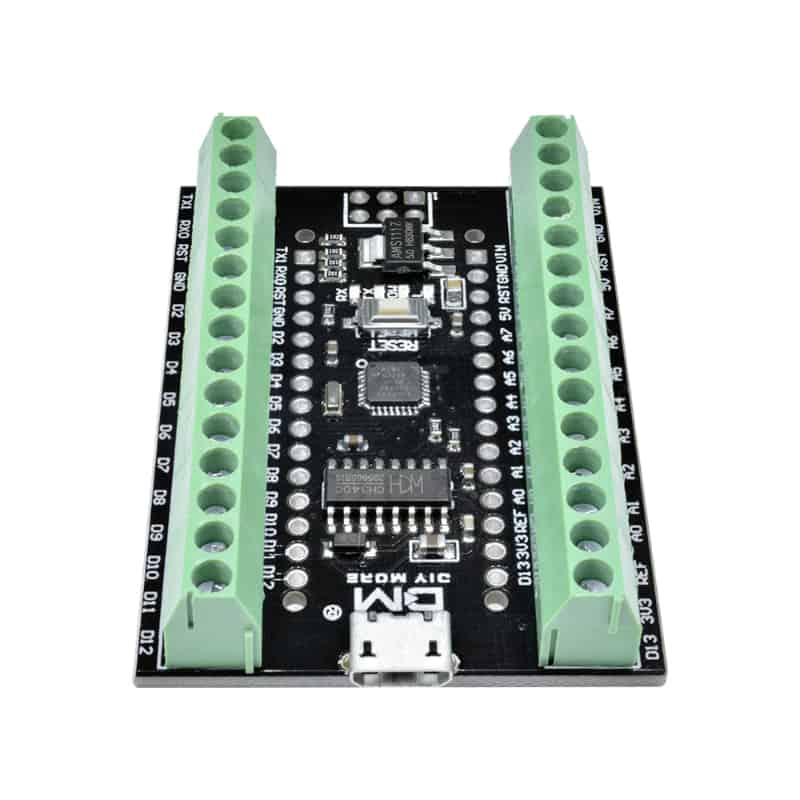

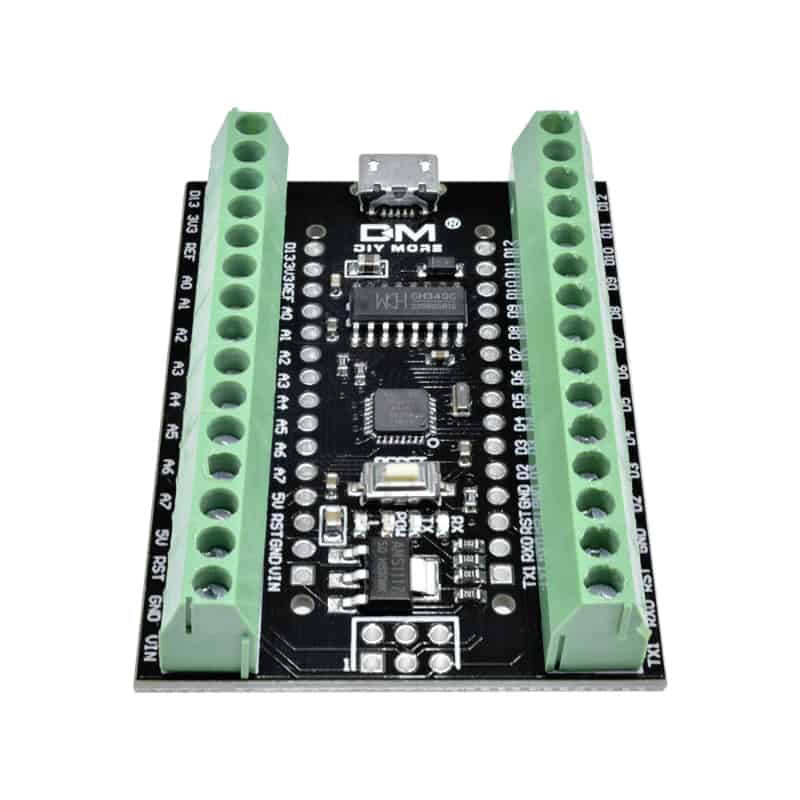

This Arduino Nano compatible module is a small, complete, system complete with screw-down terminals. Designed around the ATmega328 which is the same as the original Arduino Nano 3.
The board features a Micro USB interface
Technical Specifications
Microcontroller: ATmega328P
Operating Voltage: 5V DC
Input Voltage (recommended): 7-12 V
Digital I/O Pins: 14 (6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA
Flash Memory: 32 kB (2 kB used by Bootloader)
SRAM: 2 kB
EEPROM: 1 kB
Clock Speed: 16 MHz
This design uses the modern Micro USB connector.

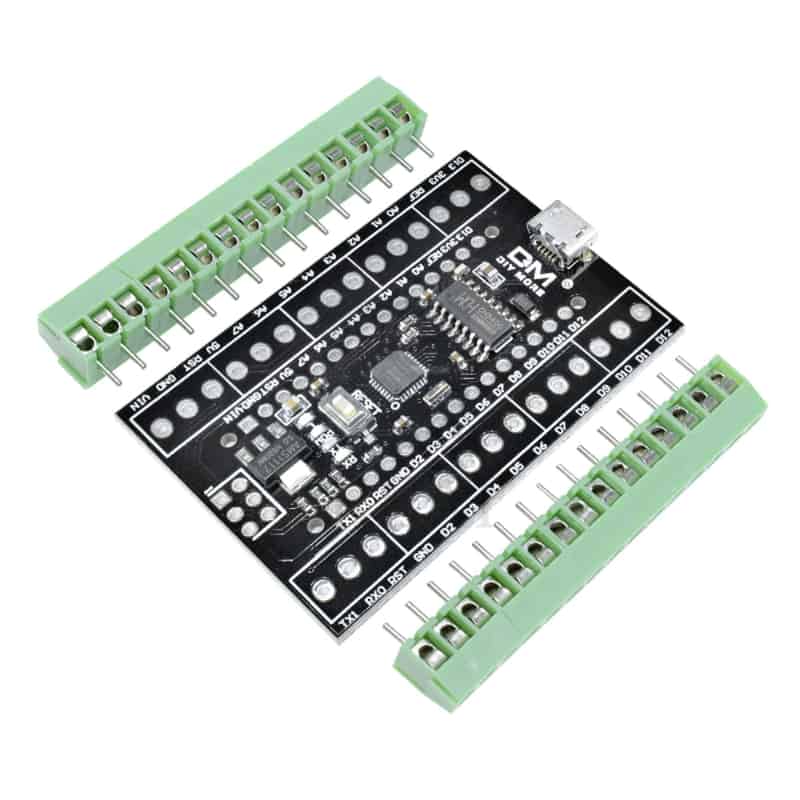

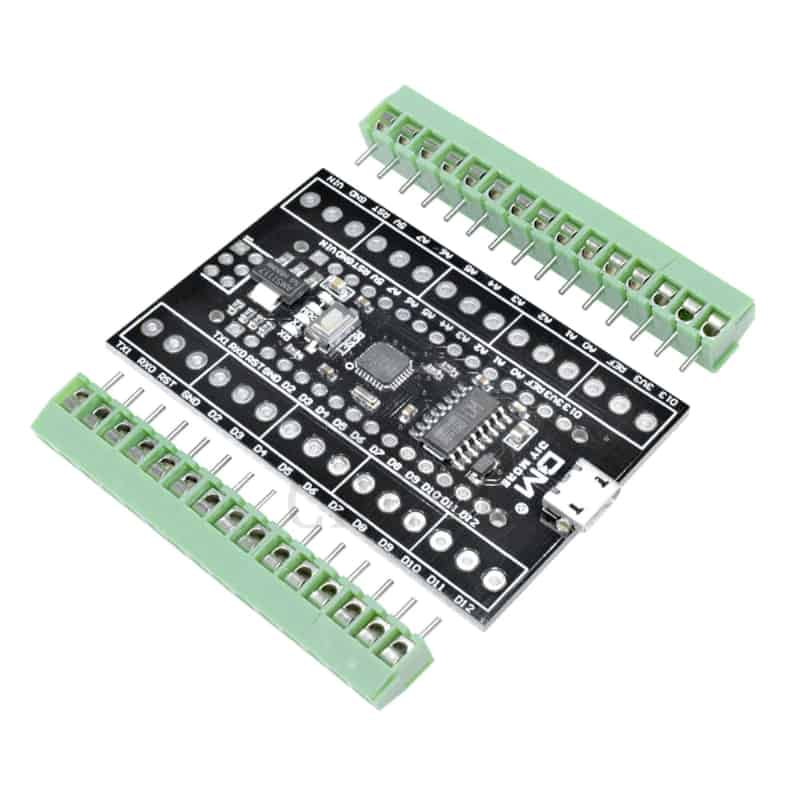

Note: This unit includes two headers of 15-pins and the six-pin expansion connector. These will require soldering onto the Nano Shield.
Nano v3 ATMega328P with Shield
- Product Code: Nano 328P Micro USB Shield
- Availability: In Stock
-
$12.00 USD
