Arduino Compatible Pro Mini 328P
Fully Arduino Compatible - 3.3V/8MHz

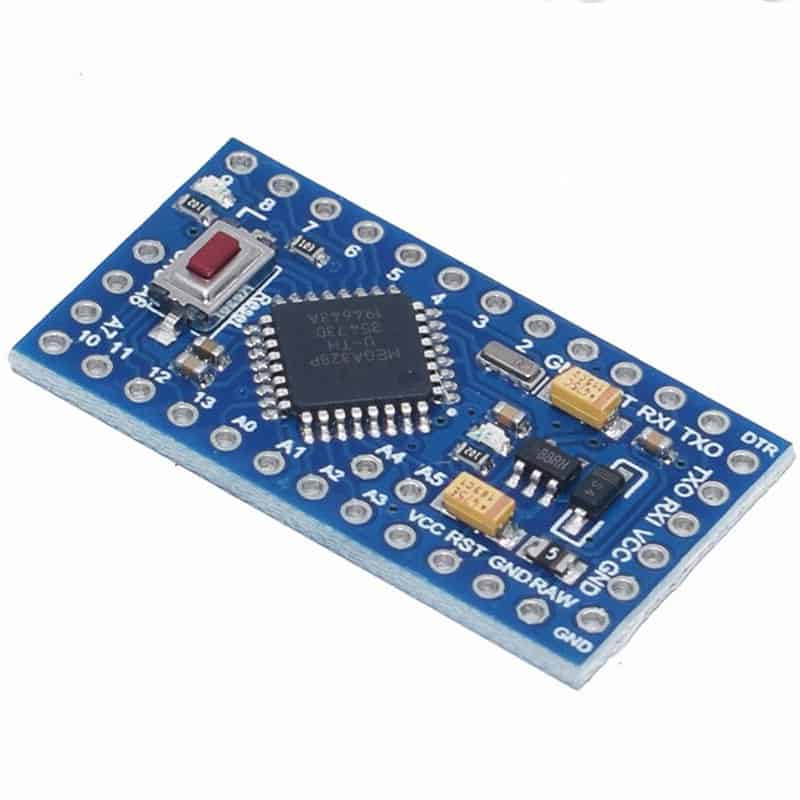

The Arduino Pro Mini 328P features an ATmega328p microcontroller running at 3.3V with a 8MHz resonator. Pre-installed bootloader allows for immediate operation.
The Pro Mini design does not have a USB connection or associated interface chips onboard and requires an external simple serial interface (see our USB to Serial Adapter Board). The board measures only 34mm x 19mm (1.34-inch x 0.73-inch) yet features an onboard 5V regulator with a DC power input range from 5V to 12V DC.

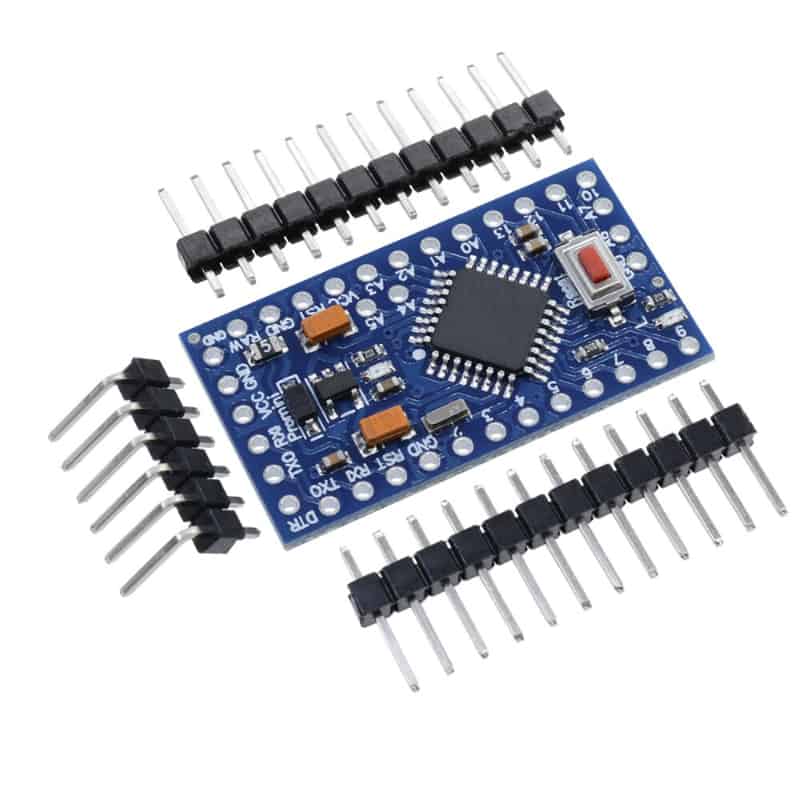

Each Pro Mini includes headers that can be soldered to the board for use with standard breadboards, or for permanent applications, wires can be soldered directly to the board.
Features:
- 14 input/output pins (RX, TX, D2-D13)
- 8 analog pins (A0-A7)
- 1 pair of TTL level serial ports (RX/TX)
- 6 PWM ports (D3, D5, D6, D9, D10, D11)
- USB connection off board
- Supports auto-reset
- 5V regulator
- DC input 5V up to 12V
- Onboard Power and Status LEDs
- 34x19mm (0.7″ x 1.3″) footprint
- Analog Pins: 8 Digital I/Os: 14
- Weighs less than 2 grams (0.07oz)
| Light Packet | |
| Package Type | Light Packet |
Pro Mini 328P 3.3V/8MHz
- Product Code: Pro Mini 328P 3.3V-8MHz
- Availability: In Stock
- Light Packet Shipping Eligible
-
$8.70 USD
