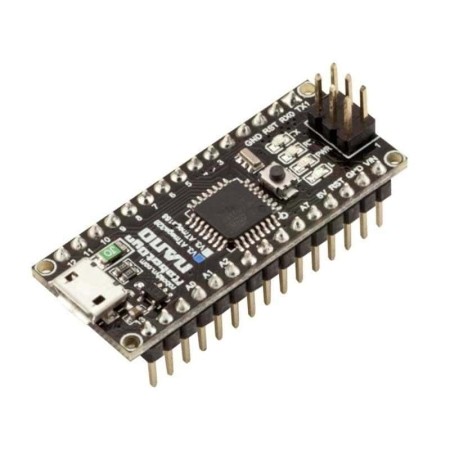

Arduino Nano v3 Compatible

ATmega328 with CH340G and MicroUSB

This Arduino Nano compatible module is a small, complete and breadboard friendly design. Designed around the ATmega328 which is the same as the original Arduino Nano 3.x. It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Micro USB cable instead of the less common Mini USB..

For added protection, the board has an auto rest fuse to protect the on-board electronics.

Technical Specifications

Microcontroller   ATmega328
Operating Voltage   5V DC
Input Voltage (recommended)   7-12 V
Input Voltage (limit)   6-20 V
Digital I/O Pins  14 (6 provide PWM output)
Analog Input Pins   8
DC Current per I/O Pin   40 mA
Flash Memory   32 kB (2 kB used by Bootloader)
SRAM   2 kB
EEPROM   1 kB
Clock Speed   16 MHz



Unlike the original Arduino Nano v3, the USB interface used a Mini USB B connector. This new design uses the more popular Micro USB B connector.

Note: This unit includes two headers of 15-pins and the six pin expansion connector. These will requiring soldering on to the processor Nano board.

Reviews about Nano v3 ATMega328 with Micro USB
Average rating: 0 reviews
Total reviews: 0
Write your own review on this product.
Write a review
Sort by:

Write a review

Please login or register to review

Nano v3 ATMega328 with Micro USB

  • Arduino Nano Compatible

  • Product Code: Arduino Nano v3 ATmega328 (Not Soldered)
  • Availability: In Stock
  • $6.95 USD
